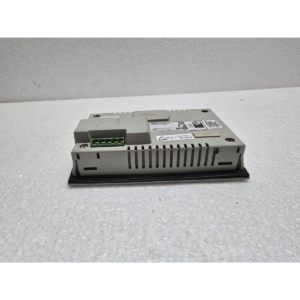

Delta TP04G-AS2

The Delta TP04G-AS2 is a highly popular, compact Text Panel HMI from Delta’s TP series.¹ It is frequently used in simple machinery where a full-color touch screen is unnecessary, but a rugged interface for monitoring and parameter adjustment is required.

Unlike the DOP-B series, this unit relies on a physical keypad and a high-contrast monochrome screen.

1. Display and Interface

The “04” in the model name indicates the display capacity (4 lines of text).

• Display Type: STN LCD (Monochrome).²



• Resolution: ³$128 \times 64$ pixels.⁴



• Backlight: Yellow-Green LED (long-life).

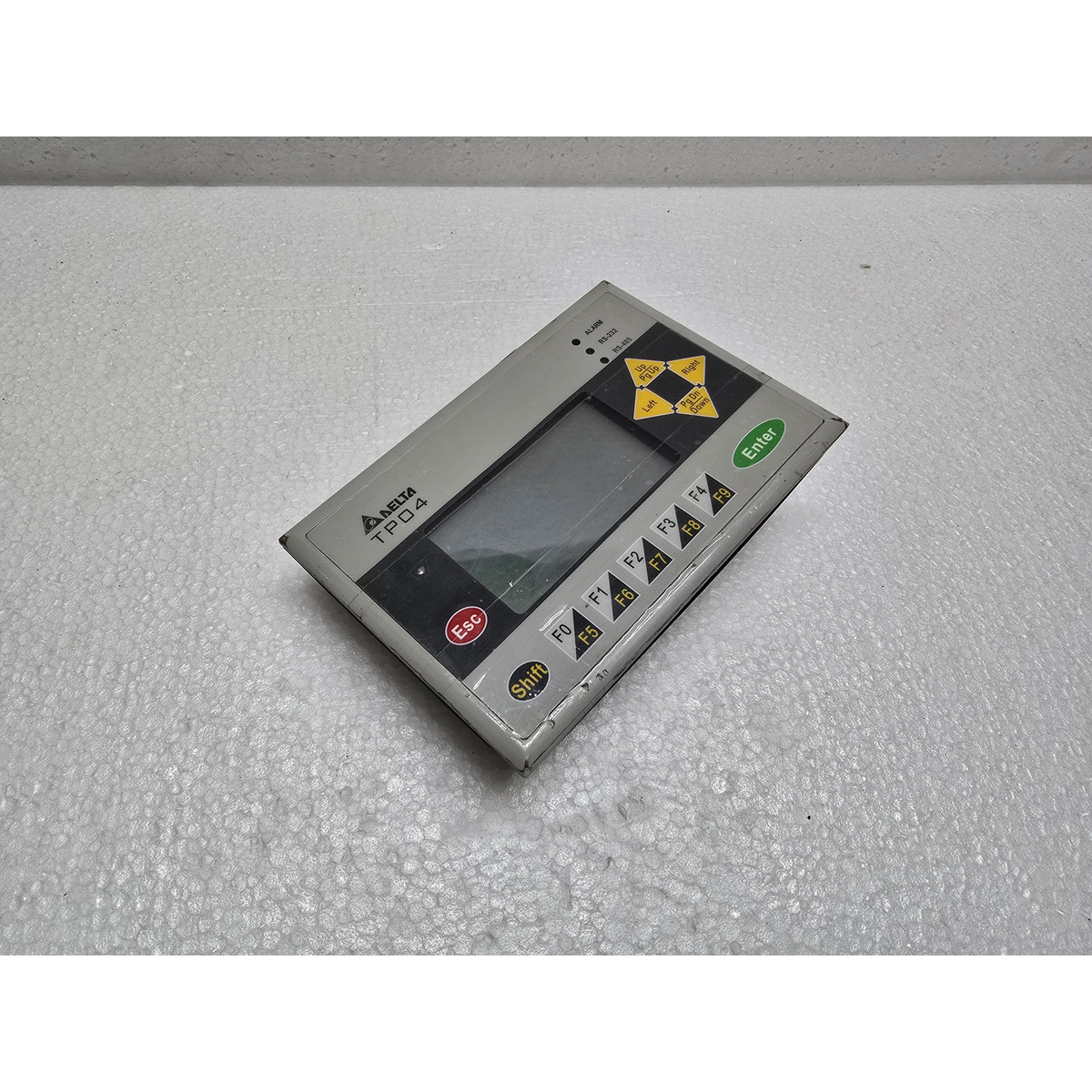

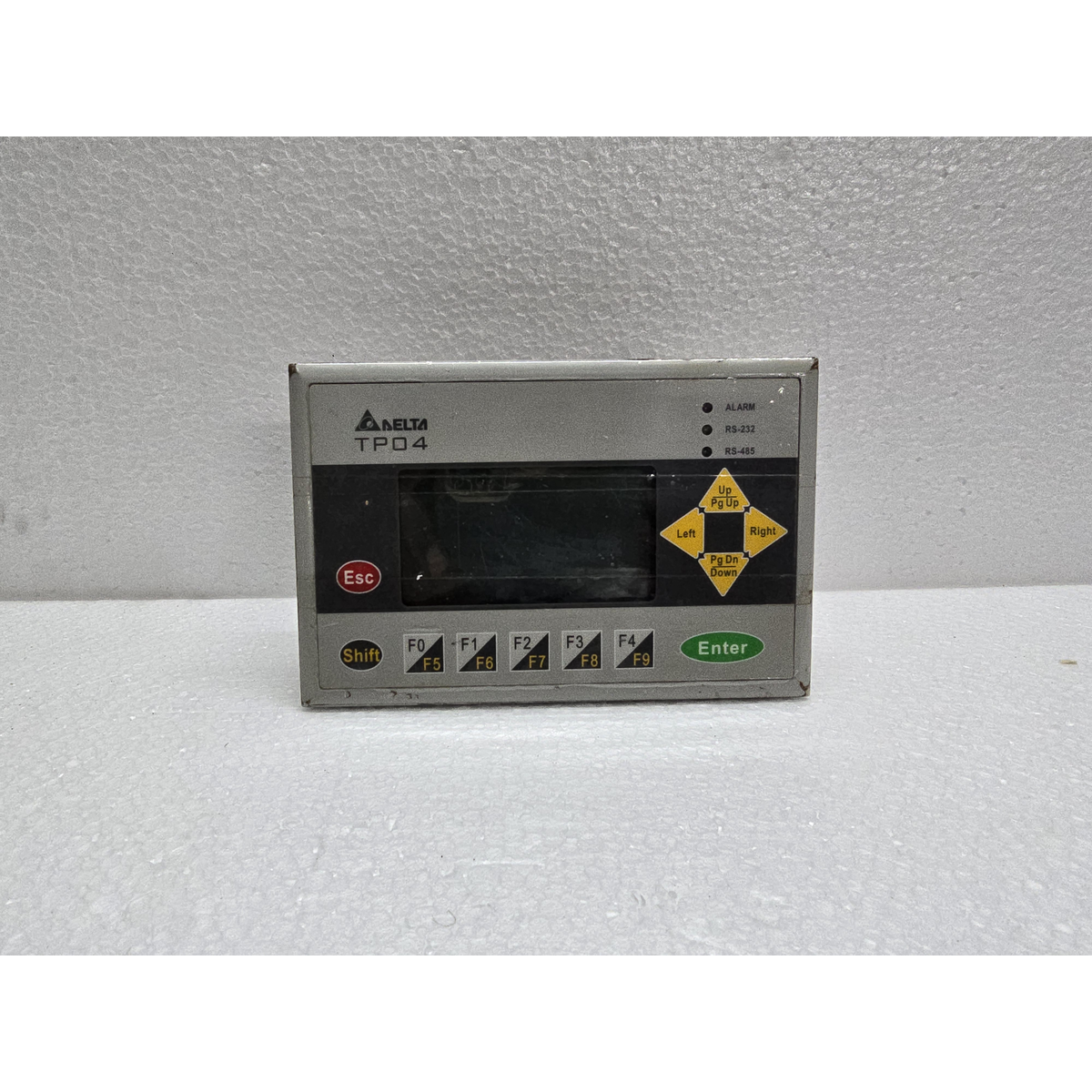

• Interface: Features 12 user-defined function keys (F1–F12) and a numeric keypad for direct control and data entry.⁵



• Screen Content: Capable of displaying text (English, Chinese, etc.) and simple bitmap graphics (logos or icons).

2. Connectivity and Communication

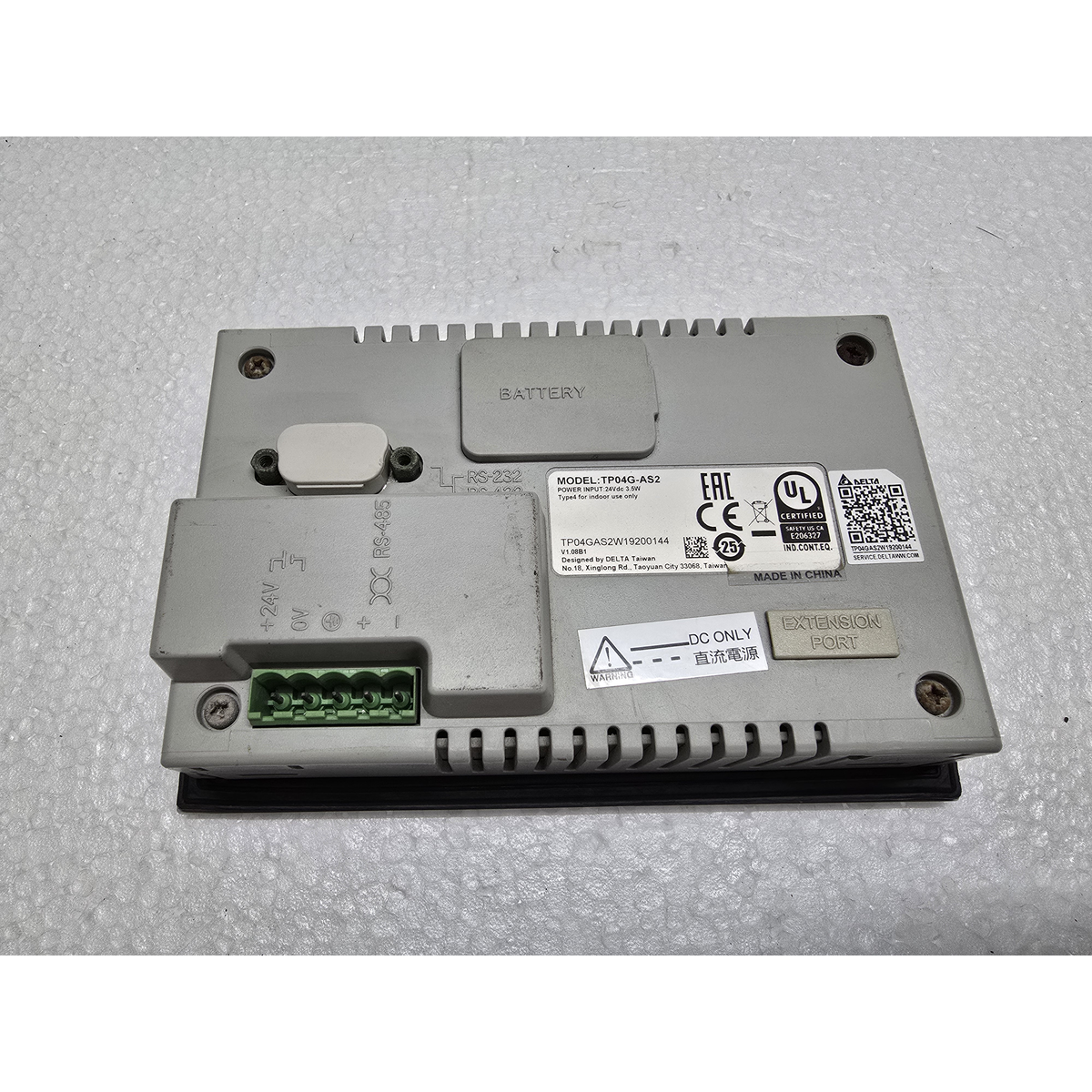

The TP04G-AS2 is designed to communicate with PLCs, VFDs, and Temperature Controllers via serial protocols.⁶

• COM 1 (RS-232): Typically used for programming via a PC or connecting to a single PLC.

• COM 2 (RS-485): Optimized for industrial networking.⁷ It supports Modbus RTU/ASCII, making it easy to daisy-chain multiple Delta VFDs or controllers.



• Protocol Support: Built-in drivers for Delta DVP PLCs, as well as Siemens, Mitsubishi, and Omron.

3. Technical Specifications

4. Key Advantages

• Durability: Physical buttons are often preferred in oily or dusty environments where touchscreens might fail or become unresponsive.

• Cost-Effective: Significantly cheaper than color TFT panels while providing all necessary functions for basic machine operation.

• Password Protection: Supports system-level passwords to prevent unauthorized changes to machine parameters.⁸



• Multi-language: Supports the display of various languages and font sizes.

5. Mounting & Dimensions

• Panel Cutout: 137 mm (W) x 68 mm (H).

• External Dimensions: 147 mm (W) x 78 mm (H) x 35 mm (D).
