Mitsubishi E1022

The Mitsubishi E1022 is a compact, rugged keypad-operated HMI from the E1000 Series. Like the E1032, it was manufactured by Beijer Electronics for Mitsubishi Electric. It is designed for simple control tasks in environments where a touchscreen is not ideal, offering a tactile and durable interface for machine operators.

1. Display and Interface

The E1022 is the smaller sibling of the E1032, designed for basic data monitoring and parameter adjustment.

• Screen Size: 3.7-inch.

• Display Type: FSTN LCD (Monochrome).

• Resolution: $240 \times 64$ pixels.

• Backlight: LED backlight with adjustable contrast.

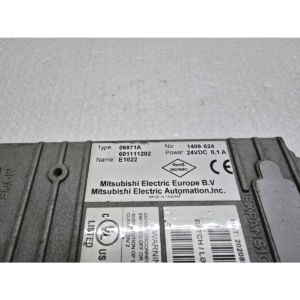

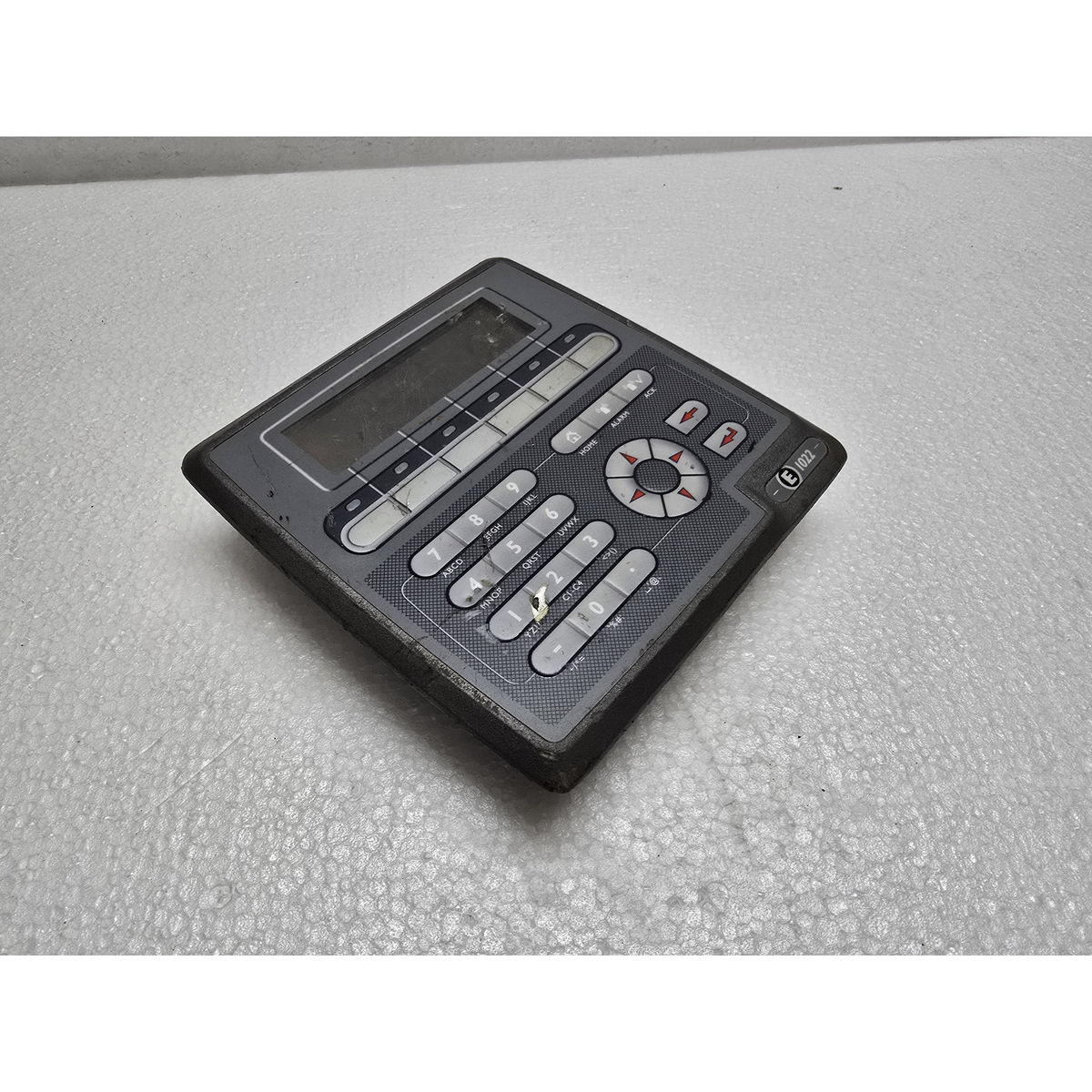

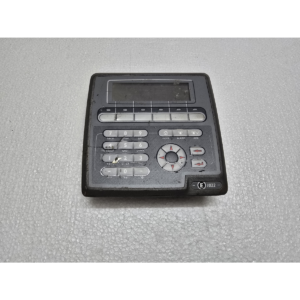

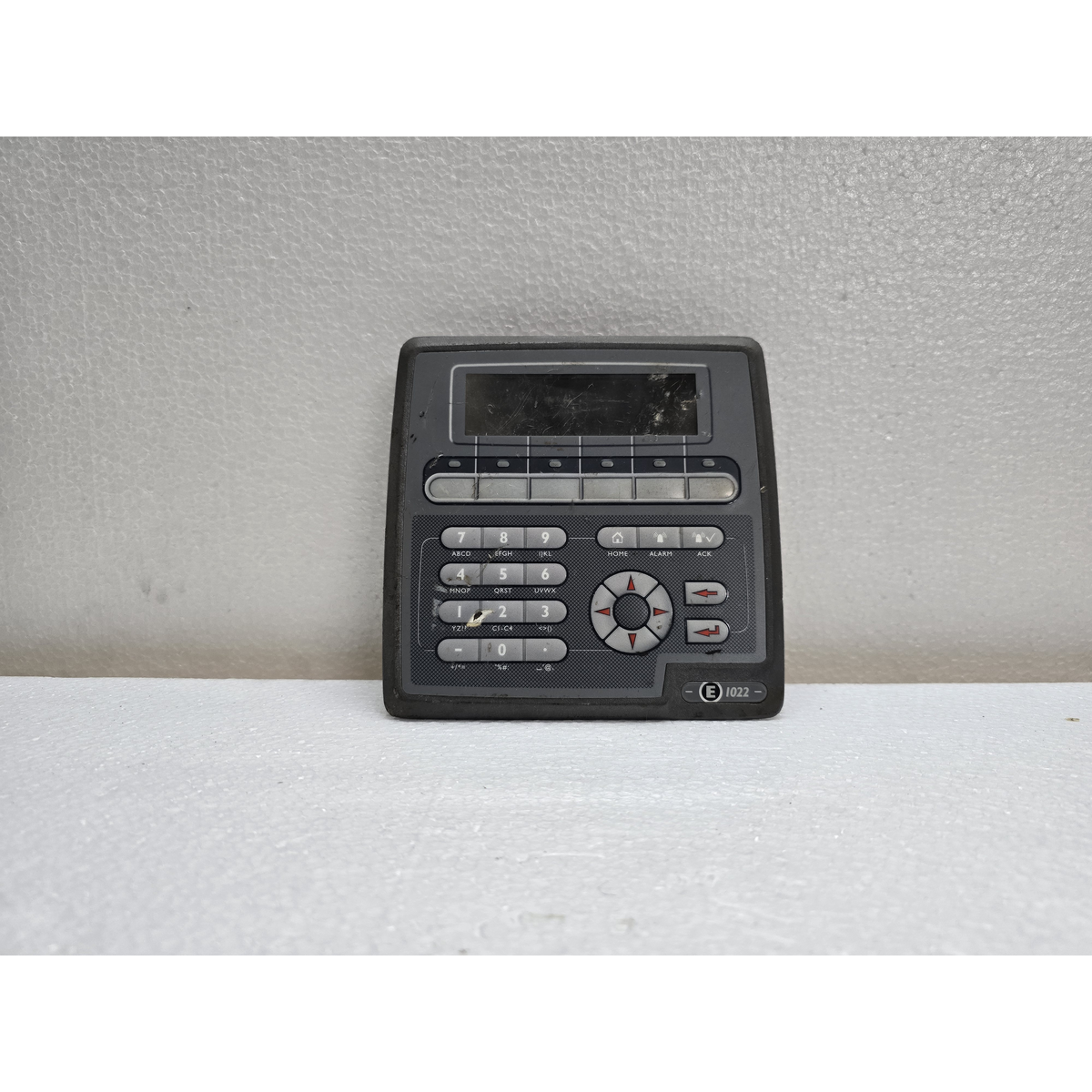

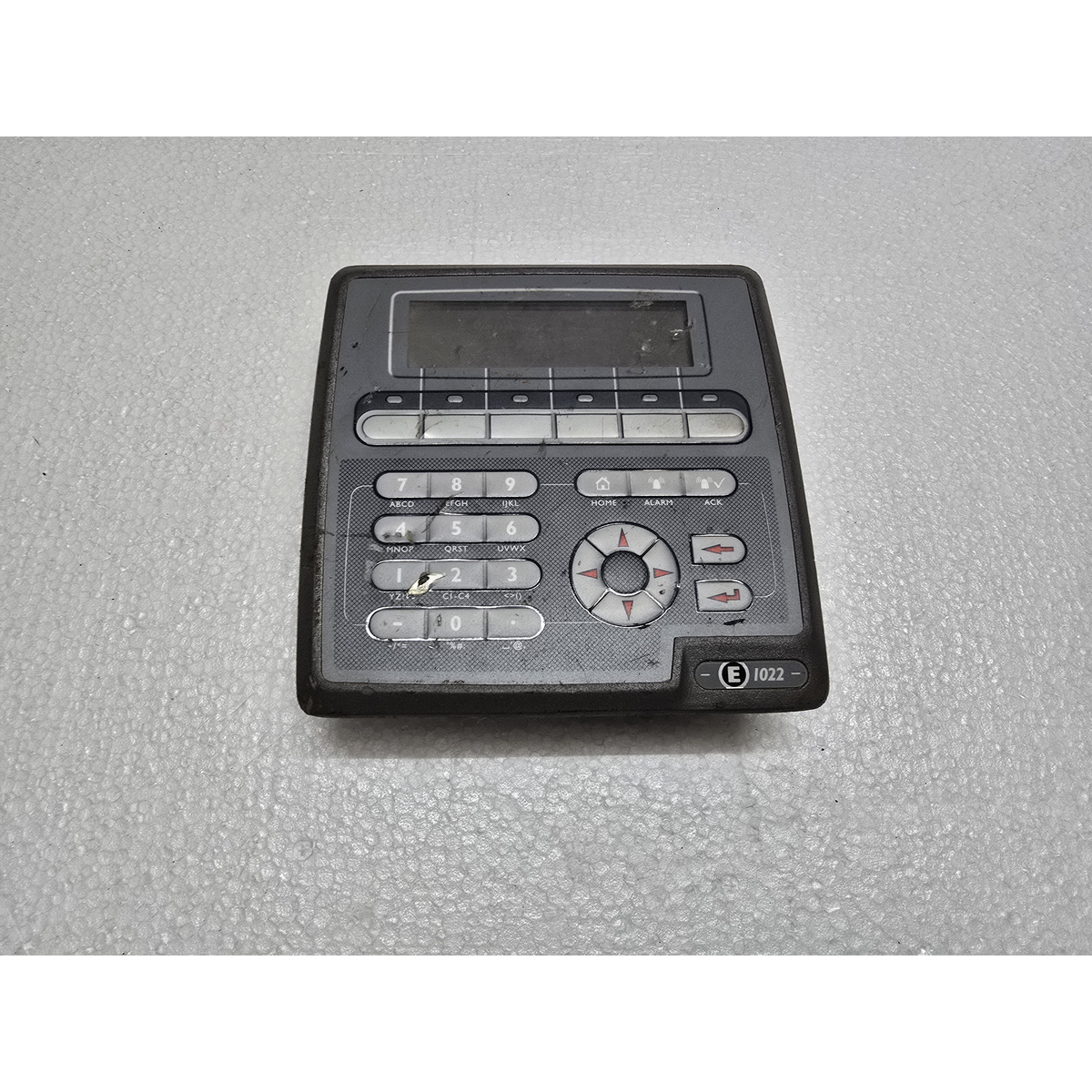

• Keypad: Features 6 programmable function keys (F1–F6) with integrated LEDs, along with a numeric keypad and navigation arrows for data entry.

2. Connectivity and Communication

Despite its small size, the E1022 offers flexible serial communication options:

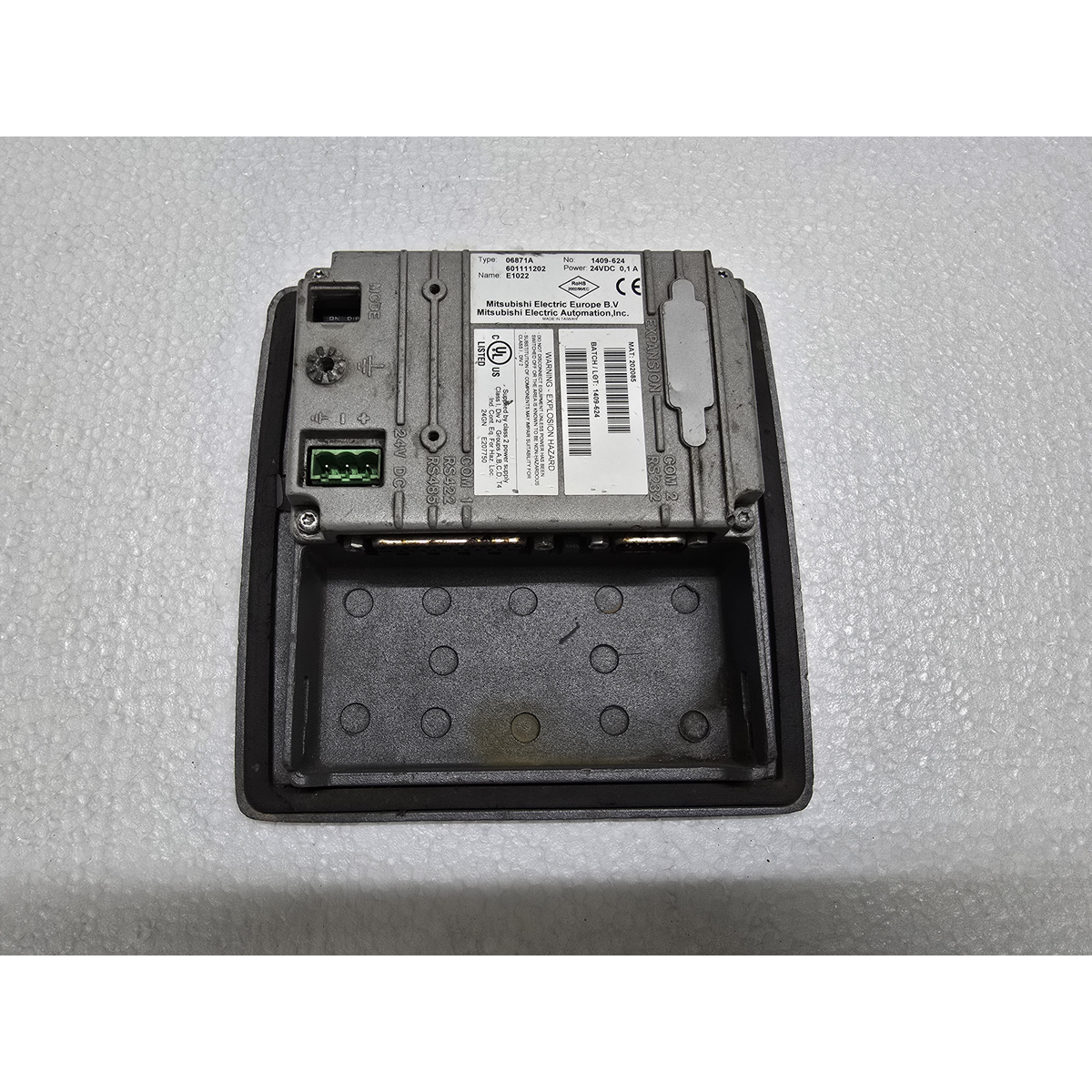

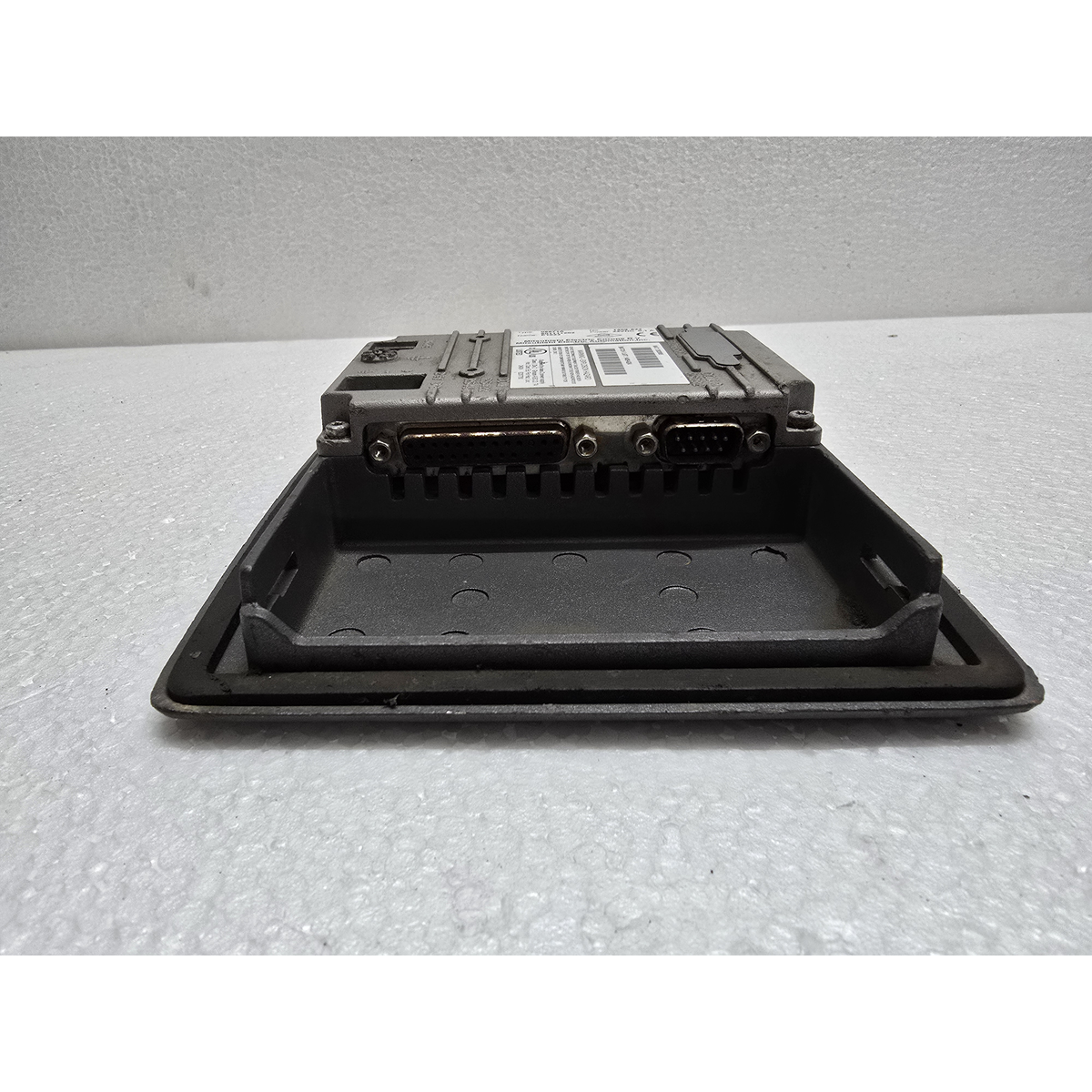

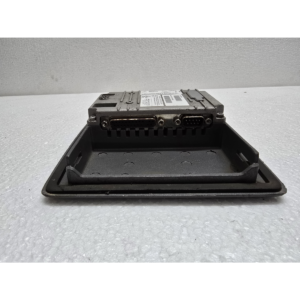

• Serial Port (RS-232C): 9-pin D-sub (Male). Used primarily for programming from a PC or point-to-point connection to a PLC.

• Serial Port (RS-422/485): 25-pin D-sub (Female). This is the standard port for high-speed networking with Mitsubishi FX or Q-Series PLCs.

• Note on Ethernet: Unlike the higher models (like E1032 or E1041), the standard E1022 does not typically include a built-in Ethernet port.

3. Hardware and Performance

• Processor: 32-bit RISC CPU.

• Memory: 1.5 MB Flash memory for project screens and 128 KB for runtime data.

• Software: Programmed using E-Designer (Version 7.0 or higher recommended).

• Real-Time Clock: Built-in RTC for date/time stamping of alarms and events.

4. Technical Specifications

5. Key Advantages

• Durability: The membrane keypad is highly resistant to oils, chemicals, and physical wear, making it better for “dirty” industrial environments than a glass touchscreen.

• Compact Footprint: Fits into very small control panels where space is a premium.

• Driver Versatility: Supports Mitsubishi protocols (MELSEC) as well as third-party drivers for Omron, Siemens, and Modbus RTU.

Legacy & Maintenance Note

The E1022 is a Legacy product and is no longer in active production.

• Replacement: If you are looking for a modern equivalent, the Mitsubishi GOT2000 Series (e.g., GT2104) is the current standard. However, since the E1022 is a keypad unit and the GOT2000 is a touchscreen, you would need to redesign the operator interface logic.

• Battery: Uses a 3V lithium battery for memory backup. If the HMI displays a battery warning or loses its clock settings, the battery should be replaced to prevent data loss.
