Mitsubishi E1032
Original price was: $1,198.00.$874.00Current price is: $874.00.
The Mitsubishi E1032 is a high-performance operator terminal from the E1000 Series, originally manufactured by Beijer Electronics for Mitsubishi Electric. It is a keypad-operated HMI designed for rugged industrial environments where a touchscreen might not be practical (e.g., operators wearing heavy gloves or environments with oil/vibration).
The E1032 is a direct successor to the older E300 series and offers significantly improved graphics and communication capabilities.
1. Display and Interface
-
Screen Size: 4.3-inch.
-
Display Type: FSTN LCD (Monochrome).
-
Resolution: $240 \times 64$ pixels.
-
Backlight: LED backlight with adjustable contrast.
-

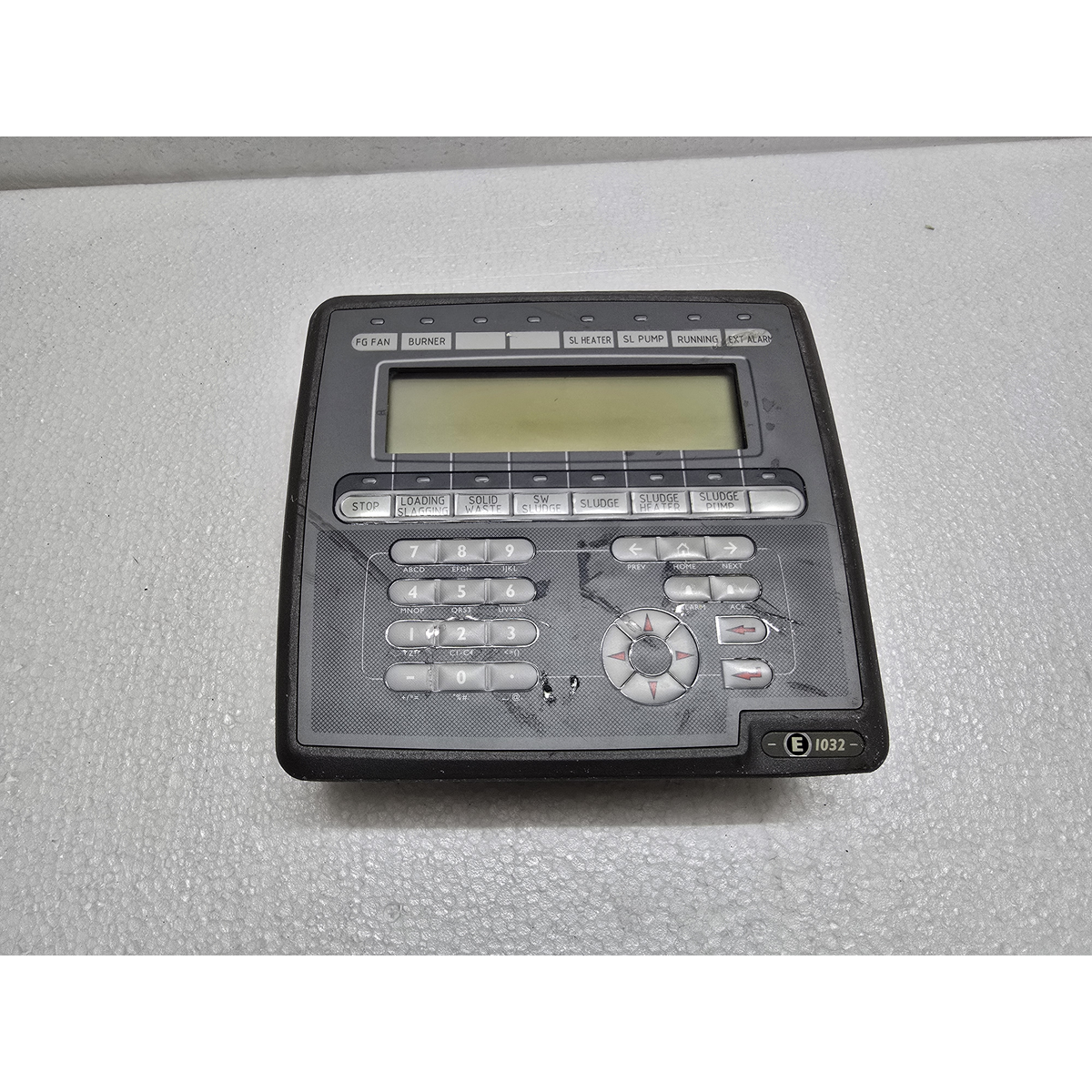

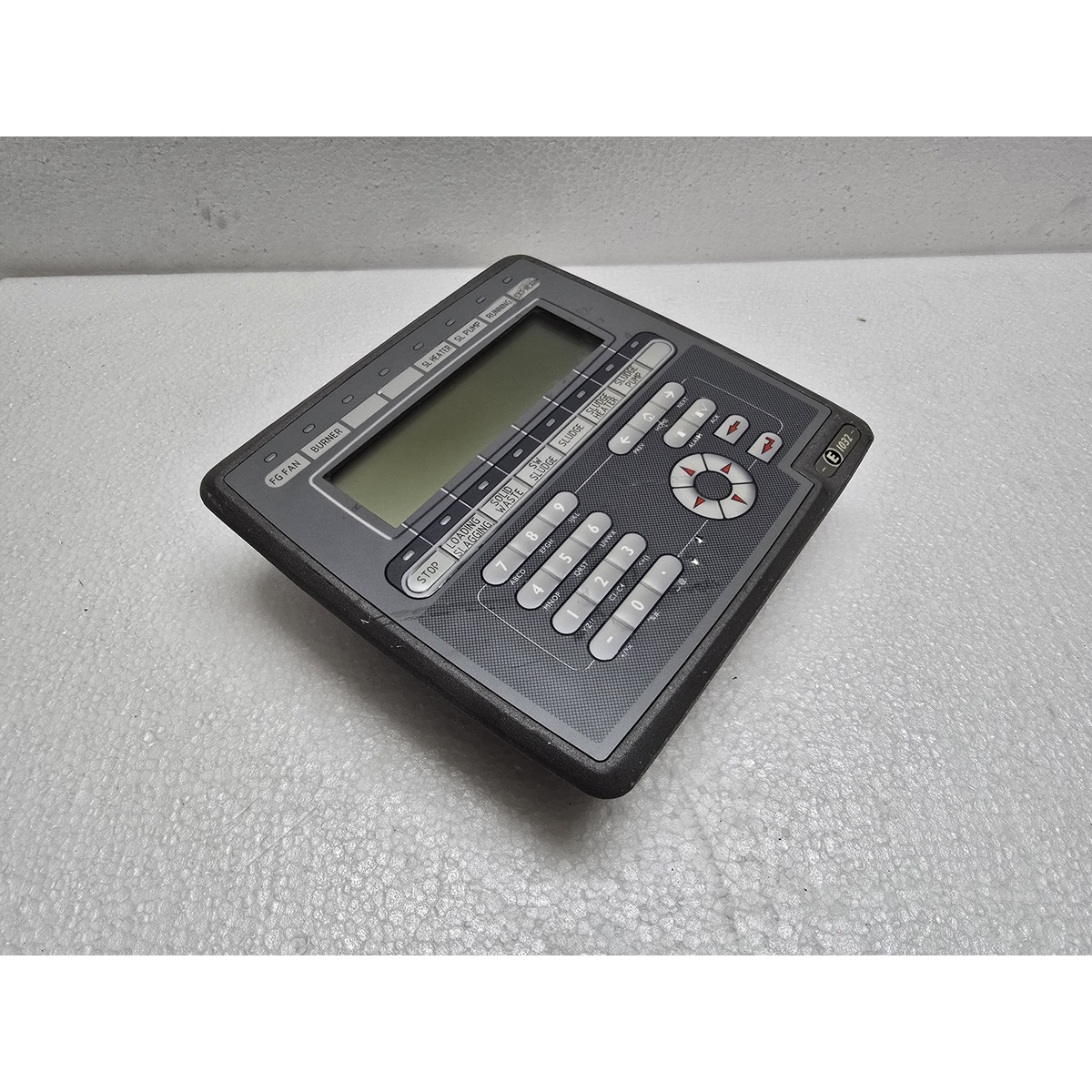

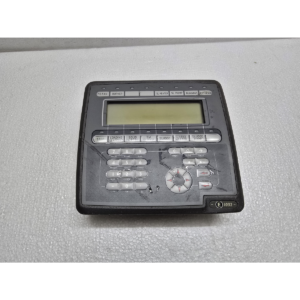

Keypad: Features 6 programmable function keys with integrated LEDs and a full numeric/navigation keypad for data entry.
2. Connectivity and Ports
The E1032 is highly versatile and can act as a bridge between different types of industrial hardware.
-

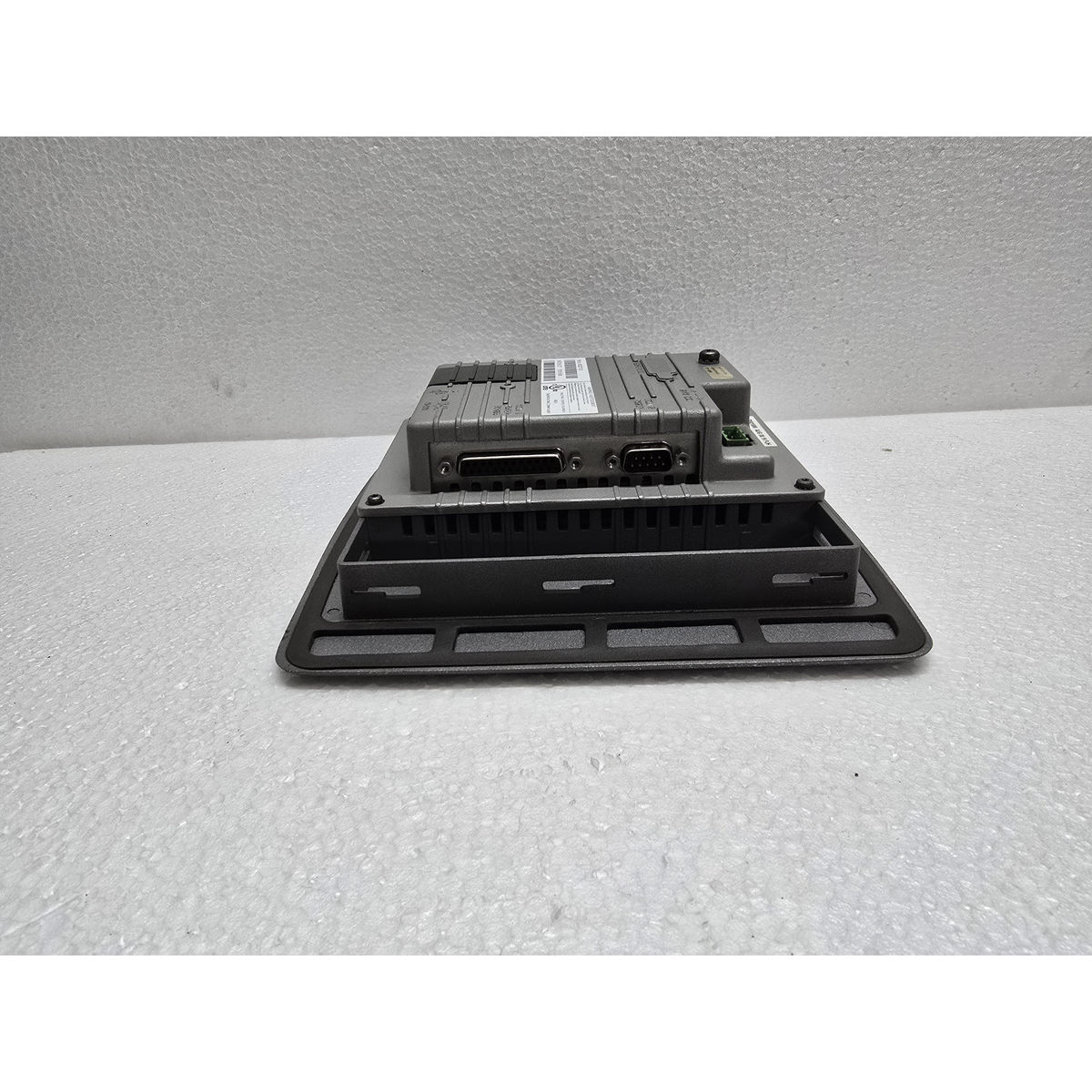

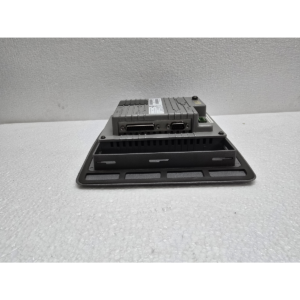

Serial Port (RS-232C): 9-pin D-sub for programming or point-to-point PLC connection.
-
Serial Port (RS-422/485): 25-pin D-sub for high-speed networking with Mitsubishi FX, Q-Series, or third-party PLCs.
-

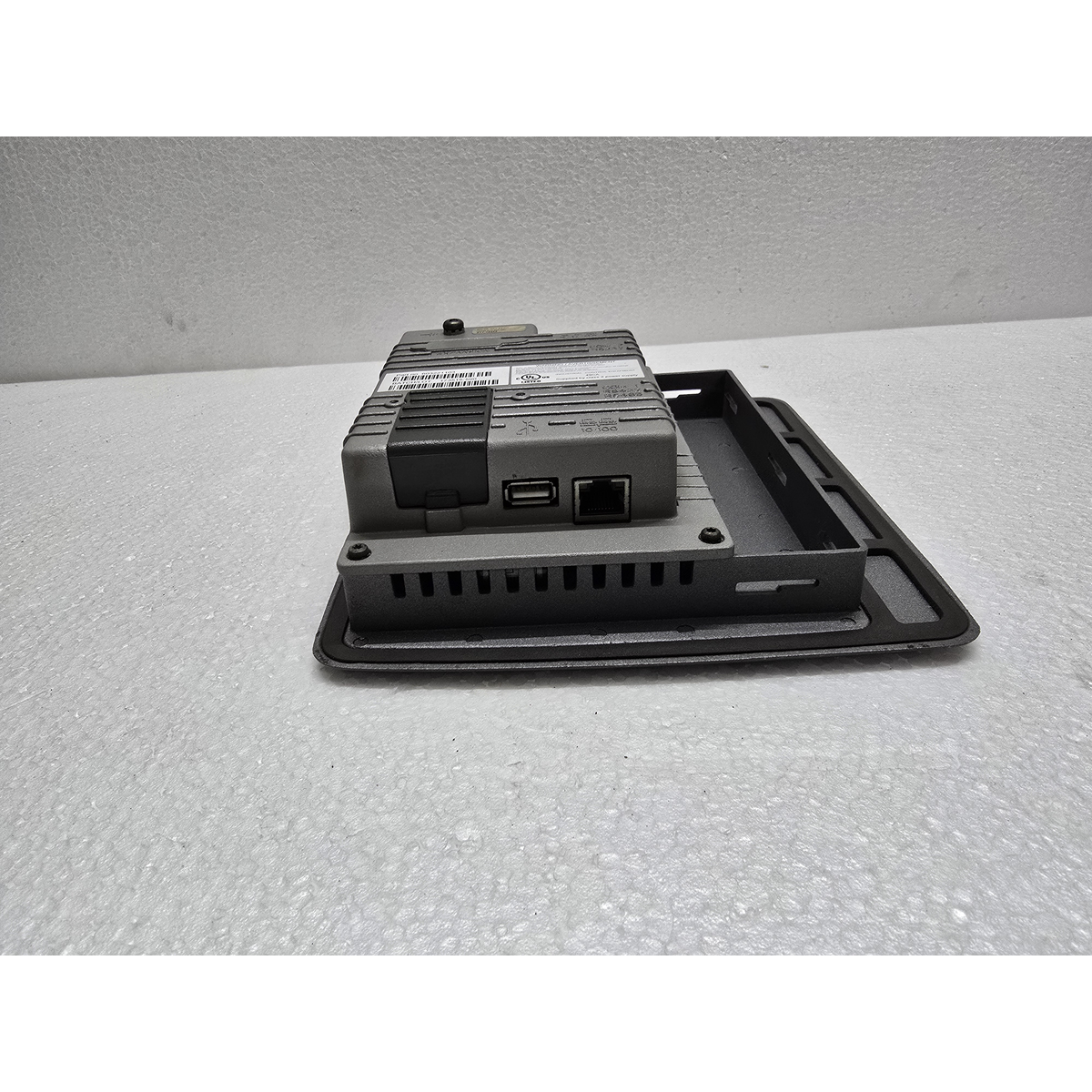

Ethernet Port: Built-in 10/100 Mbps RJ45 port for modern networking, remote access, and FTP functionality.
-
USB Port: Typically used for connecting a keyboard or for project transfers.
3. Hardware and Software
-
Processor: RISC 32-bit CPU for fast screen switching and alarm processing.
-
Memory: 3.0 MB Flash memory for the project and 512 KB for runtime data.
-
Software: Programmed using E-Designer (Version 7.0 or later).
-
Real-Time Clock: Built-in, allowing for time-stamped alarm lists and data logging.
4. Technical Specifications
| Feature | Details |

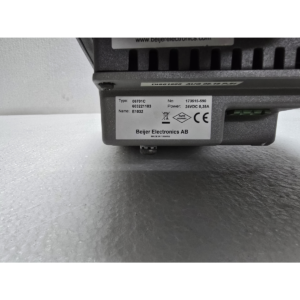

| Model Number | E1032 (06510B) |
| Input Voltage | 24V DC (18V to 32V) |
| Power Consumption | Max 7.2W |
| Front Protection | IP66 (Dust-tight and protected against powerful water jets) |
| Operating Temp | 0°C to 50°C |
| Dimensions | 156 mm (W) x 166 mm (H) x 50 mm (D) |
5. Key Features
-
Dual Driver Support: Can communicate with two different brands of PLCs simultaneously.
-
Recipe Management: Storage and editing of machine parameters directly on the HMI.
-
Alarm Handling: Advanced management of active and historical alarms with “Help” text for operators.
-
Multilingual: Supports multiple languages that can be switched instantly during operation.
Maintenance & Legacy Note
The E1032 is now a Legacy product.
-
Replacement: If you are upgrading, the modern Mitsubishi equivalent is the GOT2000 Series (e.g., GT2104-PMBLS), though this will require moving from a physical keypad to a touchscreen and migrating the project from E-Designer to GT Works3.
-
Battery: Uses a 3V lithium battery for memory backup; if the system clock resets, the battery likely needs replacement.
