Mitsubishi GT2103-PMBD
Original price was: $200.00.$105.00Current price is: $105.00.

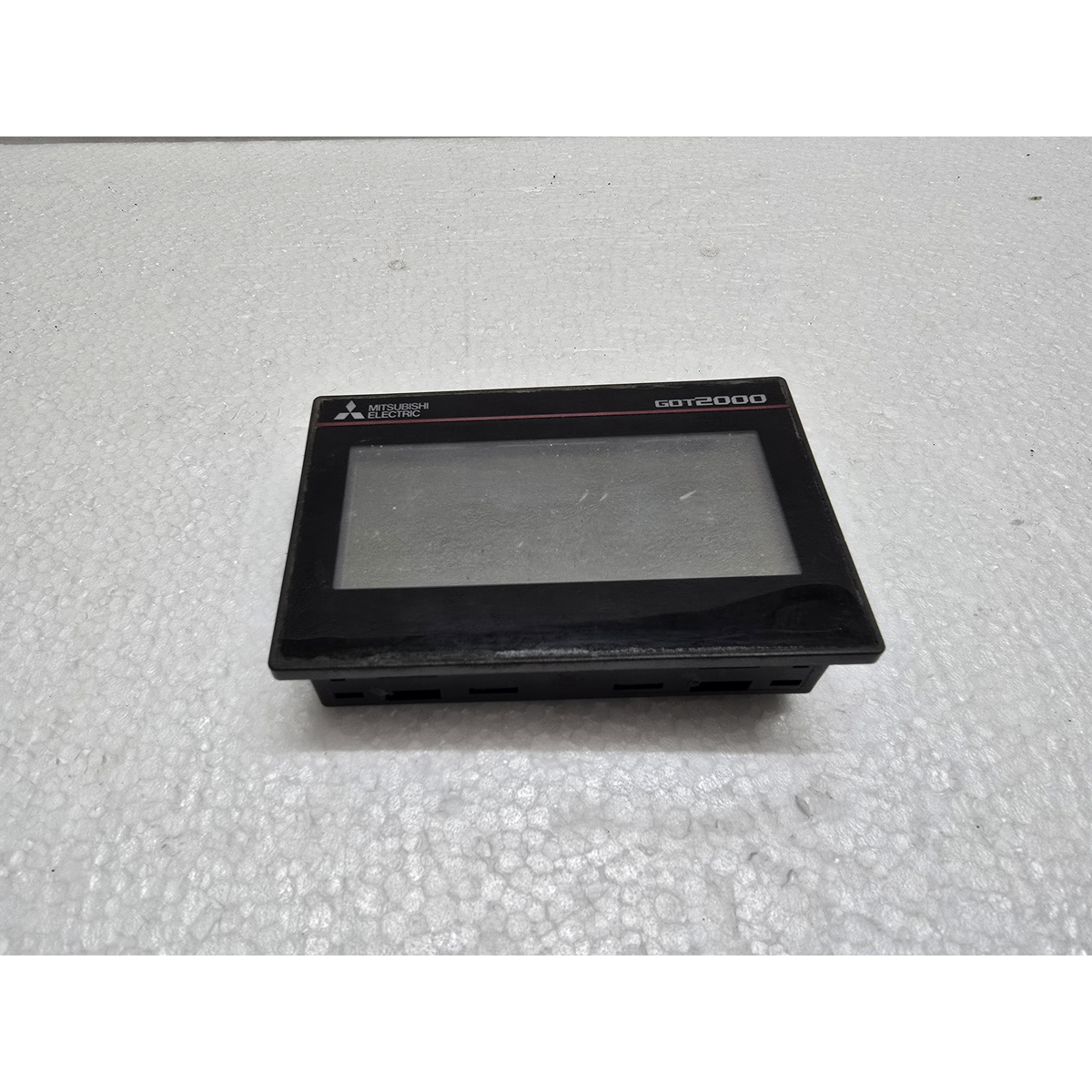

The Mitsubishi GT2103-PMBD is a compact, high-performance Human Machine Interface (HMI) from the GOT2000 Series (GT21 Model).1 It is designed for small-scale applications where space is limited, but high functionality and clear visibility are still required.
Unlike older text-based panels, this is a graphical touch-screen unit that offers a significant upgrade in terms of features and connectivity.
1. Display and Visuals

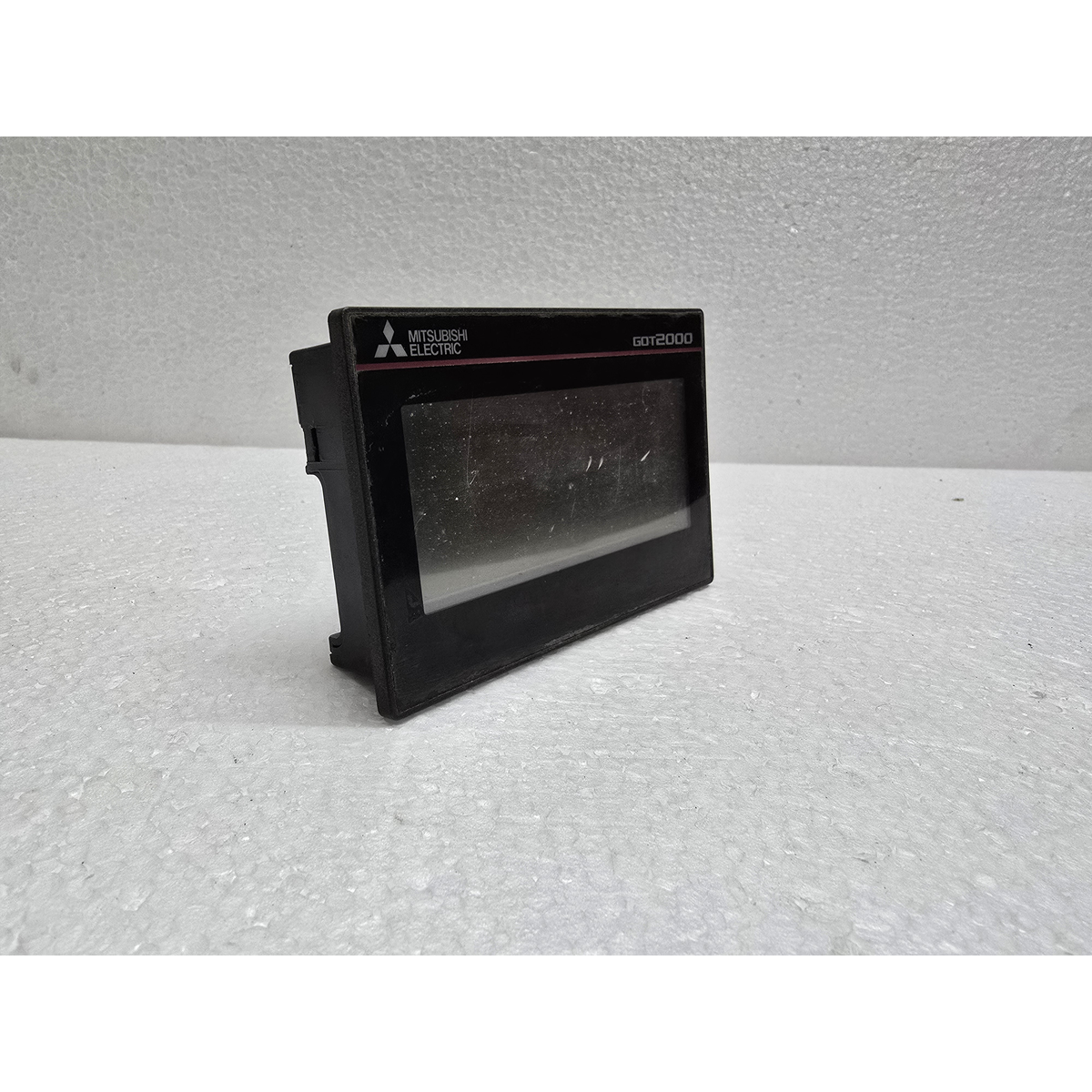

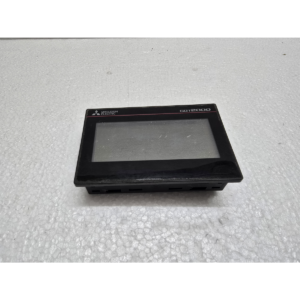

The most unique feature of this model is its 5-color LED backlight, which allows the screen color to change based on the machine status (e.g., Green for normal, Red for alarm, Orange for warning).2
-
Screen Size: 3.7-inch.
-
Display Type: Monochrome (Black/White) TFT LCD.3
-
Resolution: 320 x 128 pixels.4
-
Backlight Colors: White, Green, Pink, Orange, and Red.
-
Touch Panel: Analog resistive, allowing for flexible button layouts.5
2. Connectivity and Ports

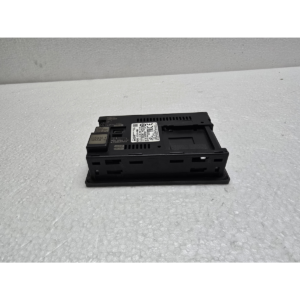

Despite its small size, the GT2103-PMBD is “all-in-one” when it comes to communication:
-

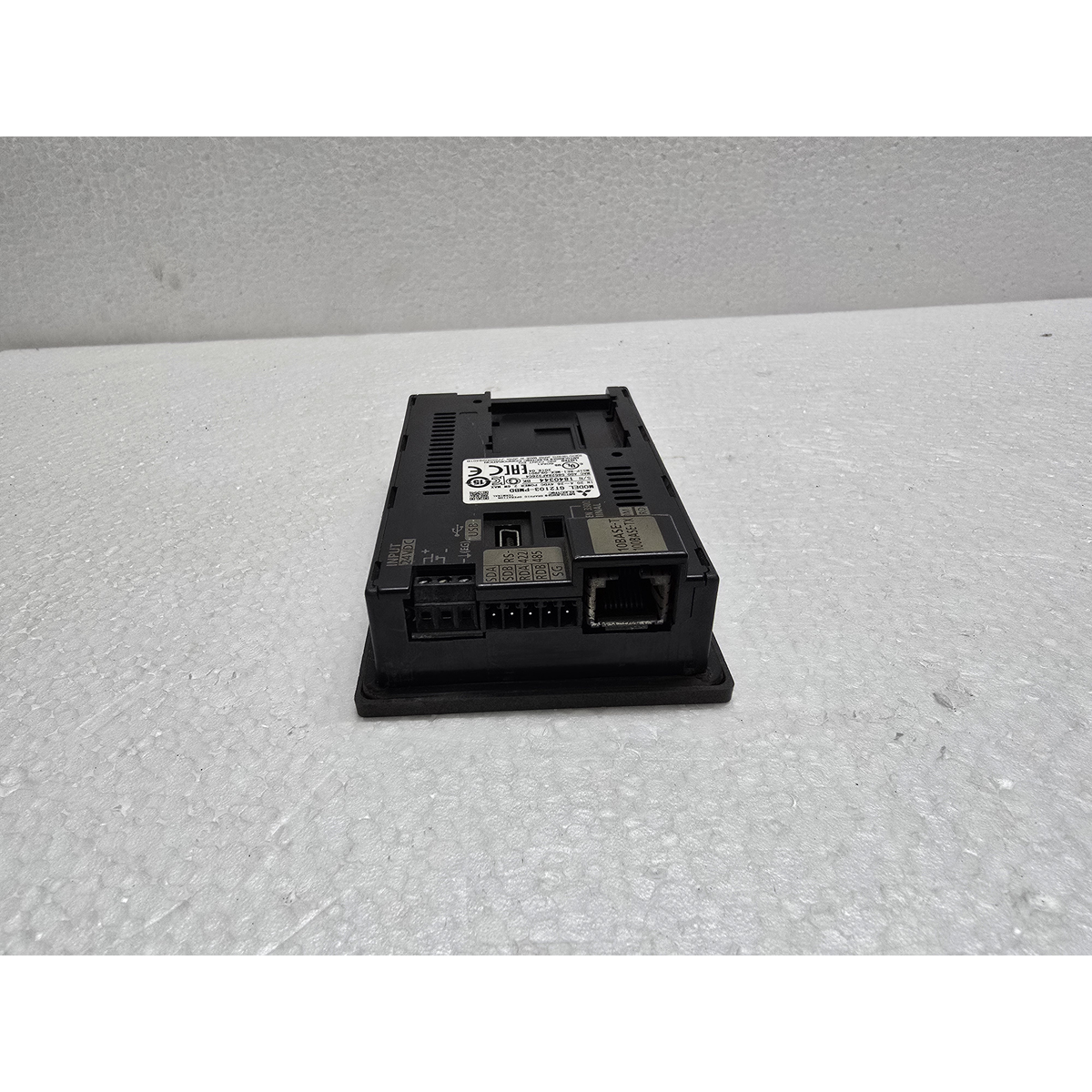

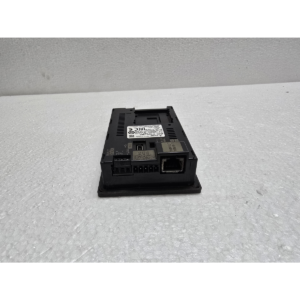

Ethernet: Built-in port for connection to PLCs, PCs, and other factory network devices.6
-
RS-422/485: Standard industrial serial interface.7
-

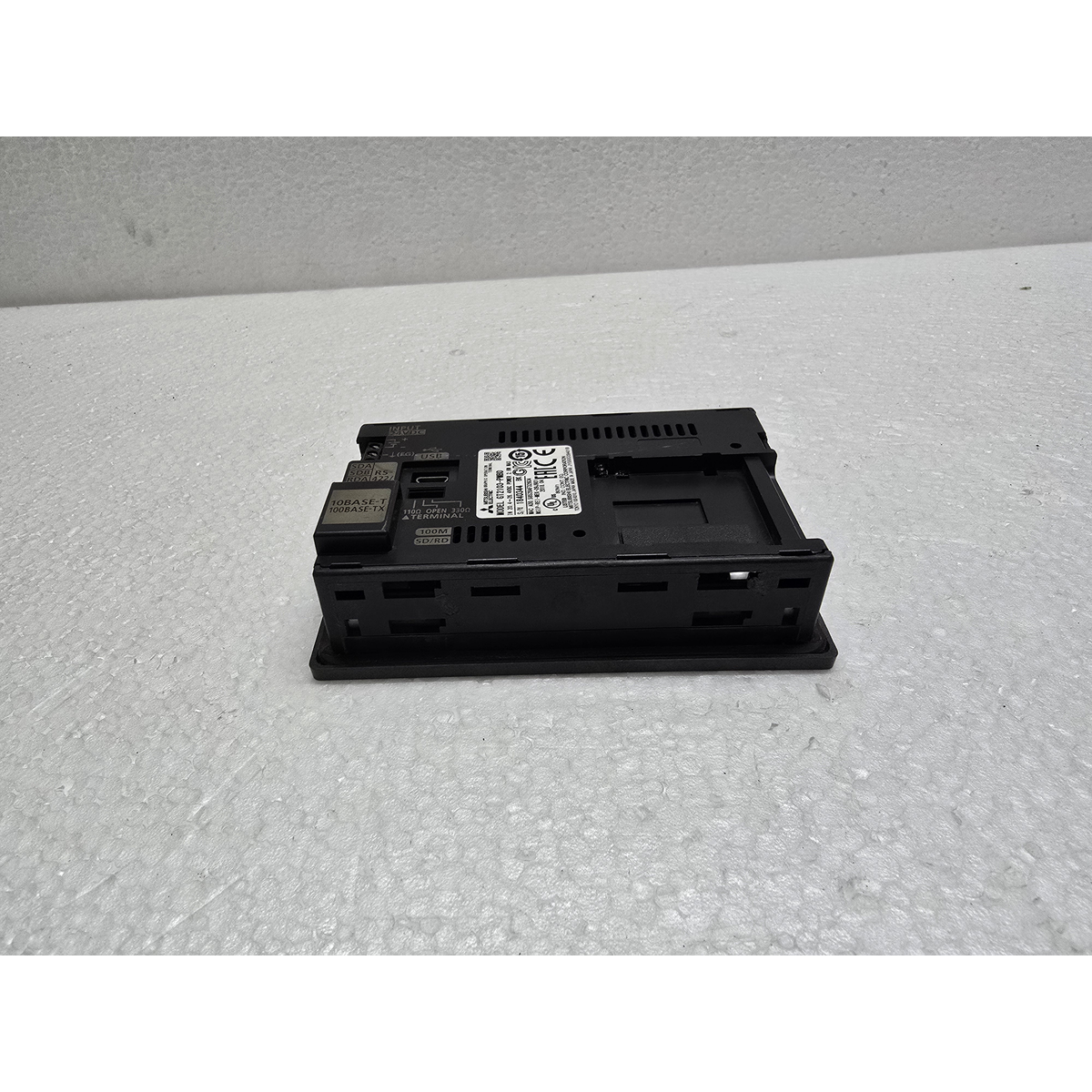

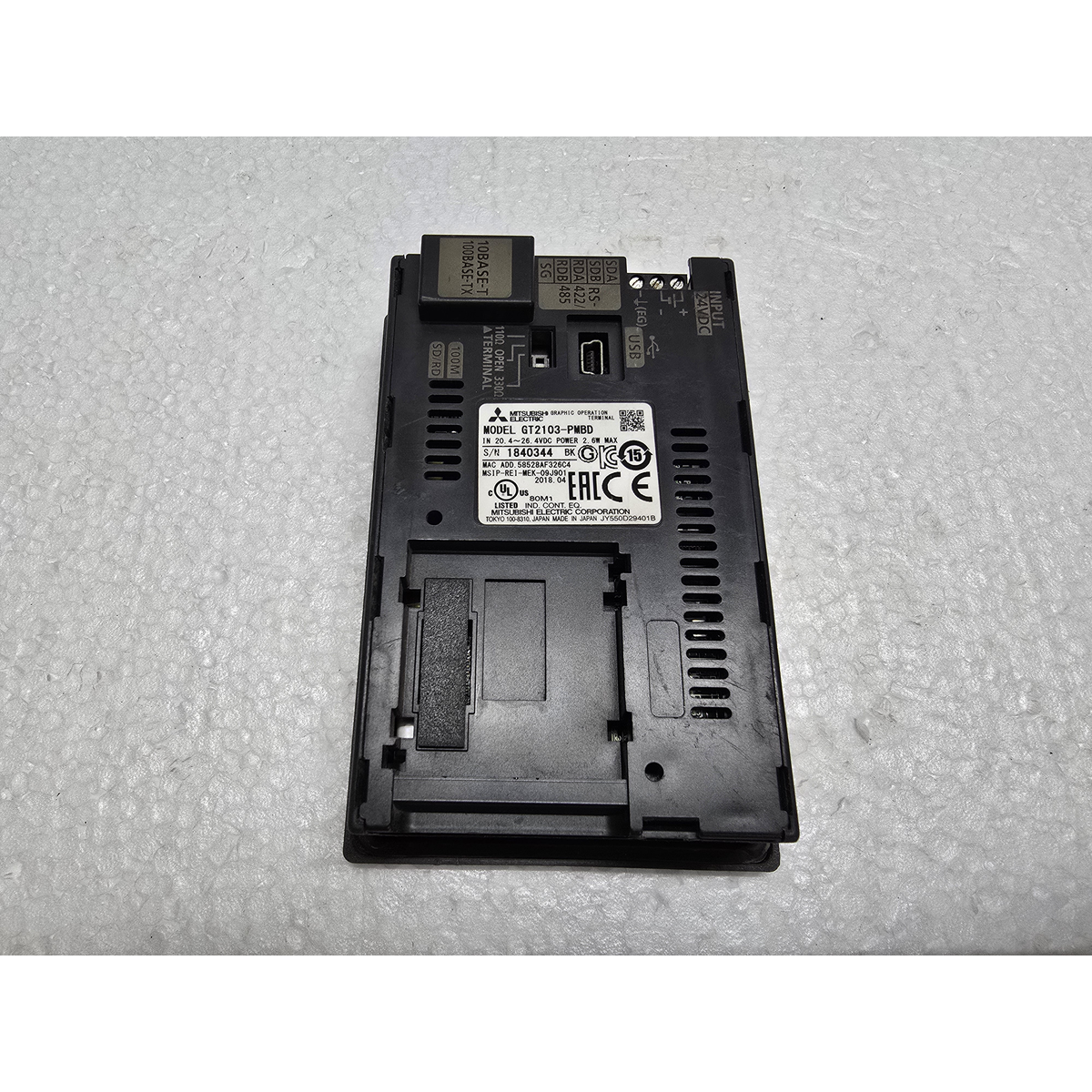

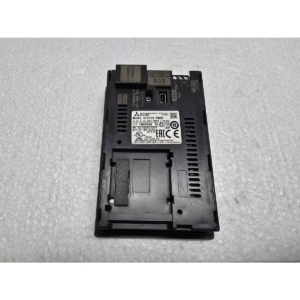

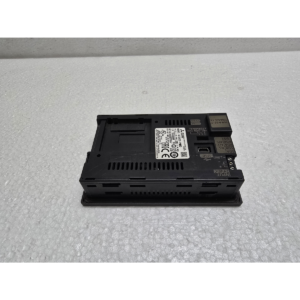

USB (Mini-B):8 Located on the rear for high-speed programming and screen transfers via PC.
-
SD Card Slot: Supports SD/SDHC cards for data logging, backups, and firmware updates.9
3. Key Advanced Features
-
Multi-channel Function: It can communicate with up to two different types of industrial devices (like a PLC and an Inverter) simultaneously.10
-
Logging Function: It can store production data and resource usage onto an SD card for analysis.11
-
FA Transparent Function: You can link a PC to the HMI via USB or Ethernet and “pass through” to the PLC for programming and debugging without changing cables.12
4. Technical Specifications
| Feature | Details |
| Model Number | GT2103-PMBD |
| Series | GOT2000 (GT21) |
| Power Supply | 24V DC |
| Internal Memory | 3 MB (for project data) |
| Protection Rating | IP67f (Front panel – dust and water resistant) |
| Operating Temp | 0°C to 55°C |
| Panel Cut-out | 105 mm (W) x 66 mm (H) |
5. Programming Software
This unit is programmed using GT Works3 (Version 1.112S or later). It supports advanced graphics, including high-quality fonts and various industrial symbol libraries.
Summary:
The GT2103-PMBD is a perfect replacement for older text displays like the Messung or early Mitsubishi FX units. Its ability to change screen colors (e.g., turning the whole screen red during an alarm) makes it very popular for operator safety and quick diagnostics.
Would you like me to help you find the “Wiring Diagram” for the 24V power connection, or do you need the “IP Address” setup guide for Ethernet communication?
