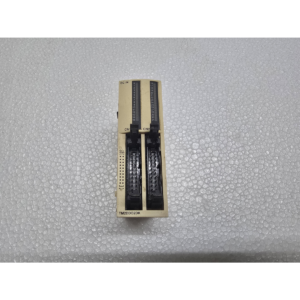

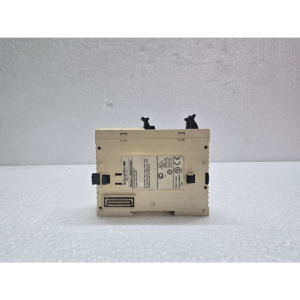

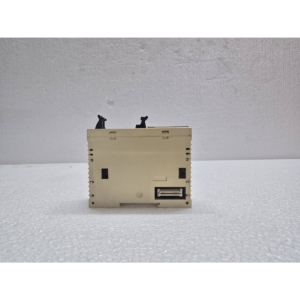

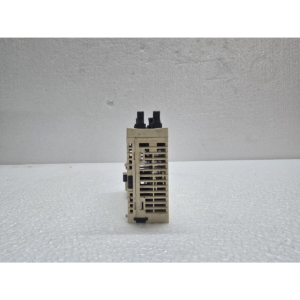

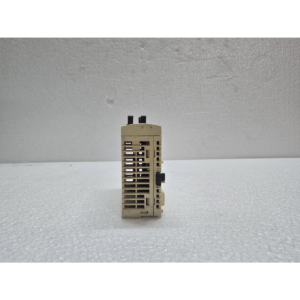

Modicon TM2DDI32DK

The Modicon TM2DDI32DK is an ultra-high-density 32-point Digital Input Expansion Module from Schneider Electric’s TM2 series.

Similar to the 16-point “DK” module, it uses the HE10 (MIL) connector system to fit 32 inputs into a module that is only 29.7 mm wide, making it one of the most space-efficient input modules in the Modicon M238 and Twido families.

1. Input Configuration

The TM2DDI32DK manages a high volume of 24V DC discrete signals (sensors, switches, relays) using a single connection point.

• Number of Inputs: 32.

• Input Voltage: 24V DC.

• Input Type: Sink/Source (Type 1 IEC 61131-2).

• Connection Type: 1x HE10 (MIL) 20-pin connector.

  • Note: Despite having 32 inputs, they are condensed into a high-density pin layout that often requires specific cabling to access all channels.

2. Technical Specifications

3. Wiring and Common Points

The 32 inputs are divided into two groups of 16. Each group shares a common terminal:

• COM0: Common for inputs 0 through 15.

• COM1: Common for inputs 16 through 31.

• Sink/Source: The groups can be wired differently (e.g., Group 0 as Sink and Group 1 as Source) if your application requires mixed sensor types.

4. Integration with Telefast

Because landing 32 wires on a single HE10 header is physically difficult, this module is almost always used with the Advantys Telefast system:

• Cables: Uses specialized HE10 cables (like the TWDFCW30K).

• Sub-bases: The cable connects to an ABE7 sub-base (such as ABE7H16R10). Since the sub-bases are usually 16-channel units, a 32-point module typically requires a “splitter” cable or two separate sub-bases to break out all 32 points.

5. Key Advantages

• Maximum Density: Ideal for large-scale machines with high sensor counts where control cabinet space is extremely limited.

• LED Diagnostics: Features two display blocks of LEDs (16 each) providing instant visual status for all 32 input channels.

• Reduced Footprint: At less than 30 mm wide, it provides the same I/O count as four 8-
