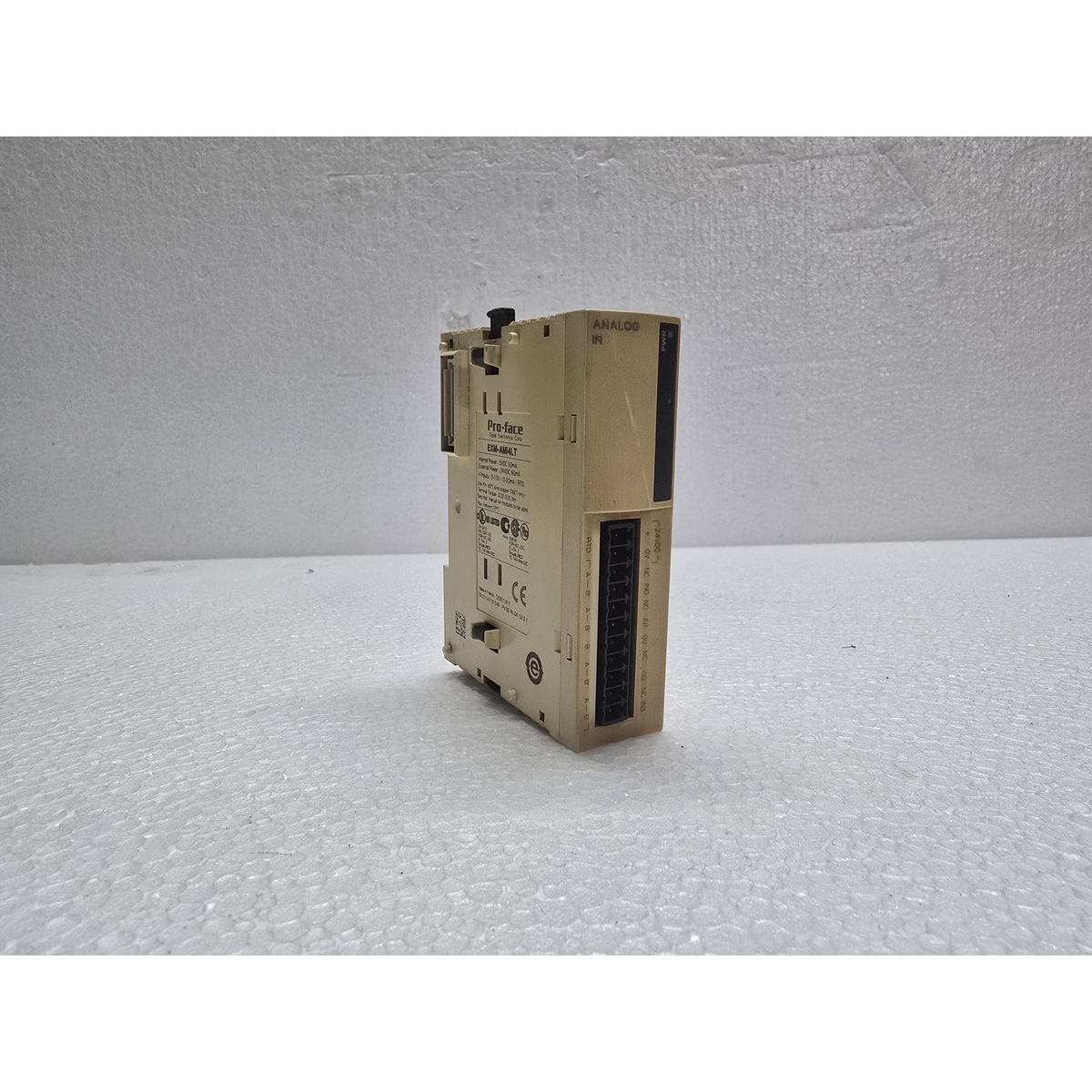

The Pro-face EXM-AMI4LT

The Pro-face EXM-AMI4LT is an Analog Input Expansion Module designed specifically for the GP4000M and LT4000M series modular HMIs.

It belongs to the EXM Series of I/O modules, which are snapped onto the rear of the modular HMI “Rear Module” to expand the system’s ability to read sensors and process signals.

1. Function and Capabilities

The EXM-AMI4LT is a dedicated analog interface. The “4” in the model name indicates it has 4 Input Channels.

• Input Type: Multi-range Analog. It can be configured for both Voltage and Current signals.

• Resolution: 12-bit (0 to 4095). This provides a high degree of precision for reading levels, pressures, or flow rates.

• Sampling Time: Approximately 10ms per channel, suitable for most standard industrial process controls.

2. Supported Input Ranges

Each of the 4 channels can be individually configured via the GP-Pro EX software for the following signals:

• Voltage: $0–10V$ DC or $-10$ to $+10V$ DC.

• Current: $0–20mA$ or $4–20mA$.

3. Connection and Installation

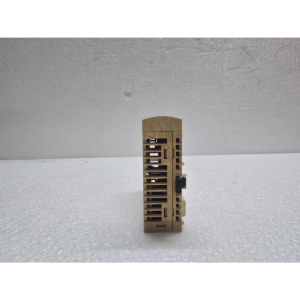

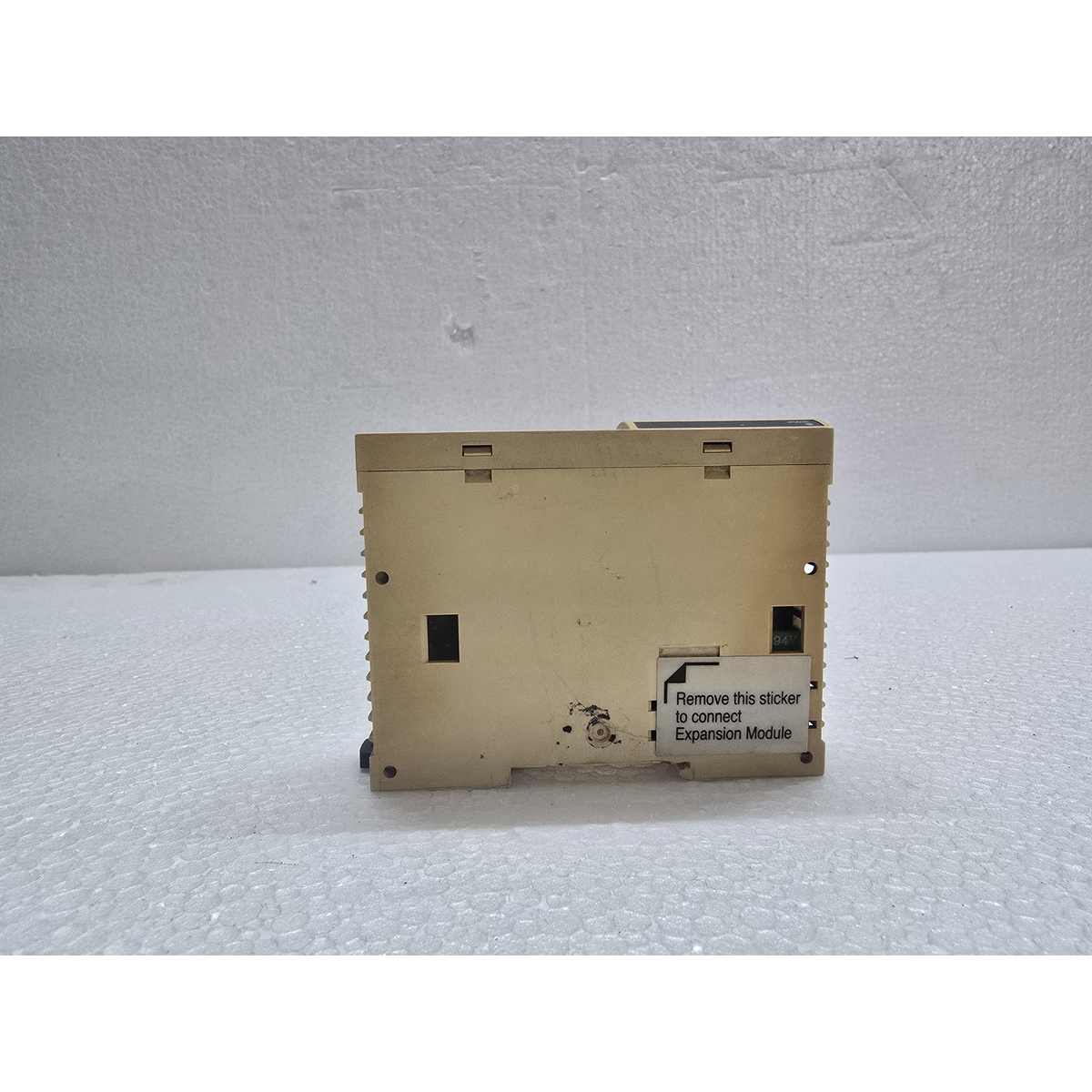

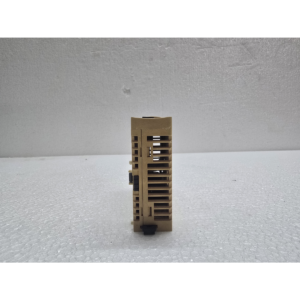

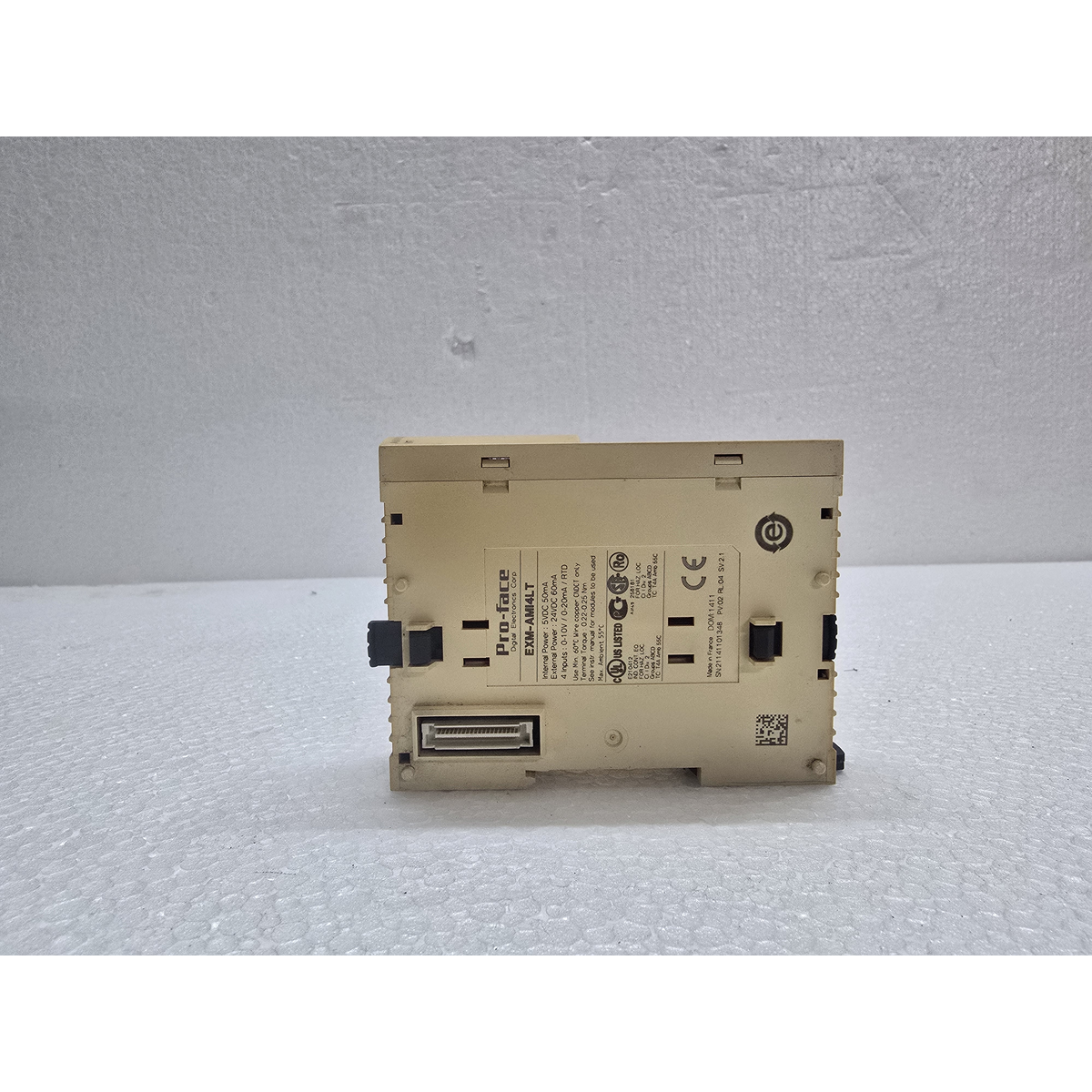

• Modular Snap-on: This module does not require a separate communication cable. It features a lateral connector that plugs directly into the back of the HMI controller module (e.g., PFXGM4B01D).

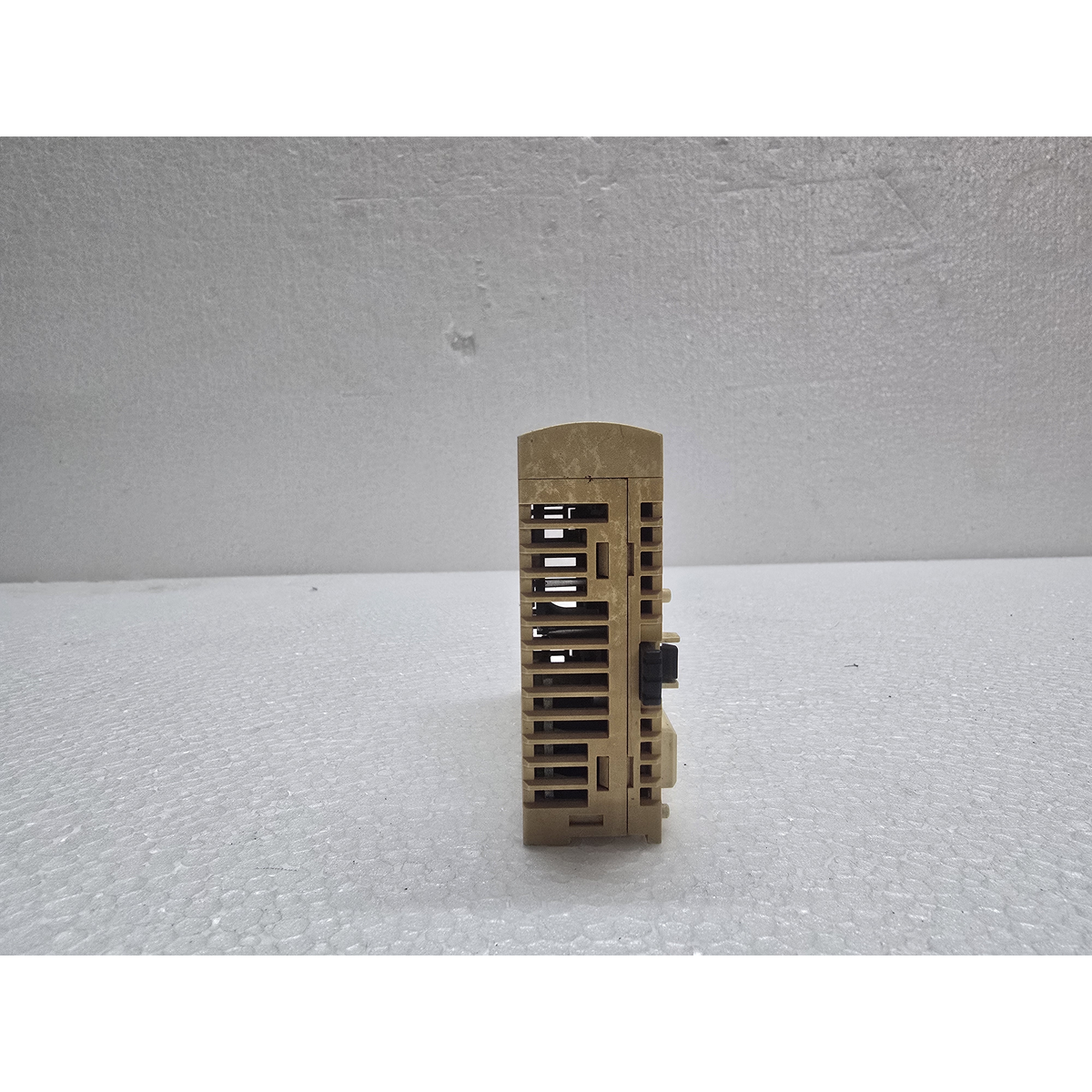

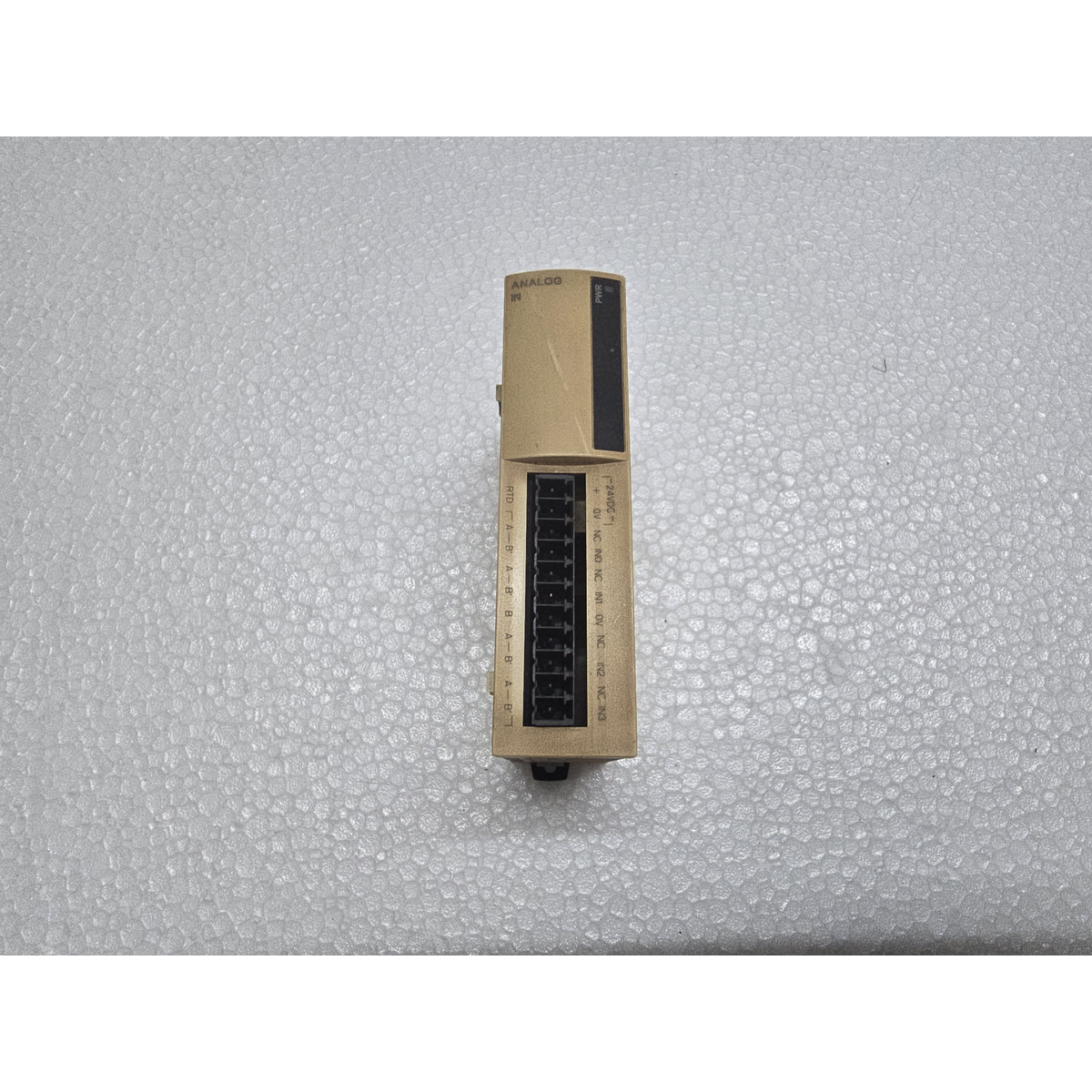

• Terminal Block: Features a removable screw terminal block, which allows you to pre-wire the sensors and easily replace the module if necessary without disconnecting individual wires.

• External Power: Requires an external 24V DC power supply to power the internal conversion circuitry.

4. Technical Specifications

5. Key Advantages

• Space Saving: Since it attaches directly to the back of the HMI, it eliminates the need for a separate PLC rack or a remote I/O head.

• Integrated Logic: When used with an LT4000M (Logic Terminal), you can use these analog values directly in your ladder logic for PID control or scaling.

• Hot-Swappable Terminal: The removable connector simplifies maintenance in mission-critical applications.
