Allen-Bradley MicroLogix 1400 1766-L32BXB 32-Point Controller

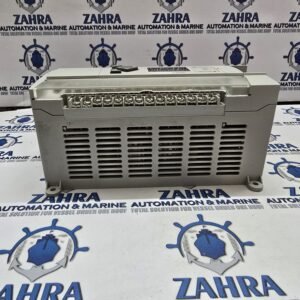

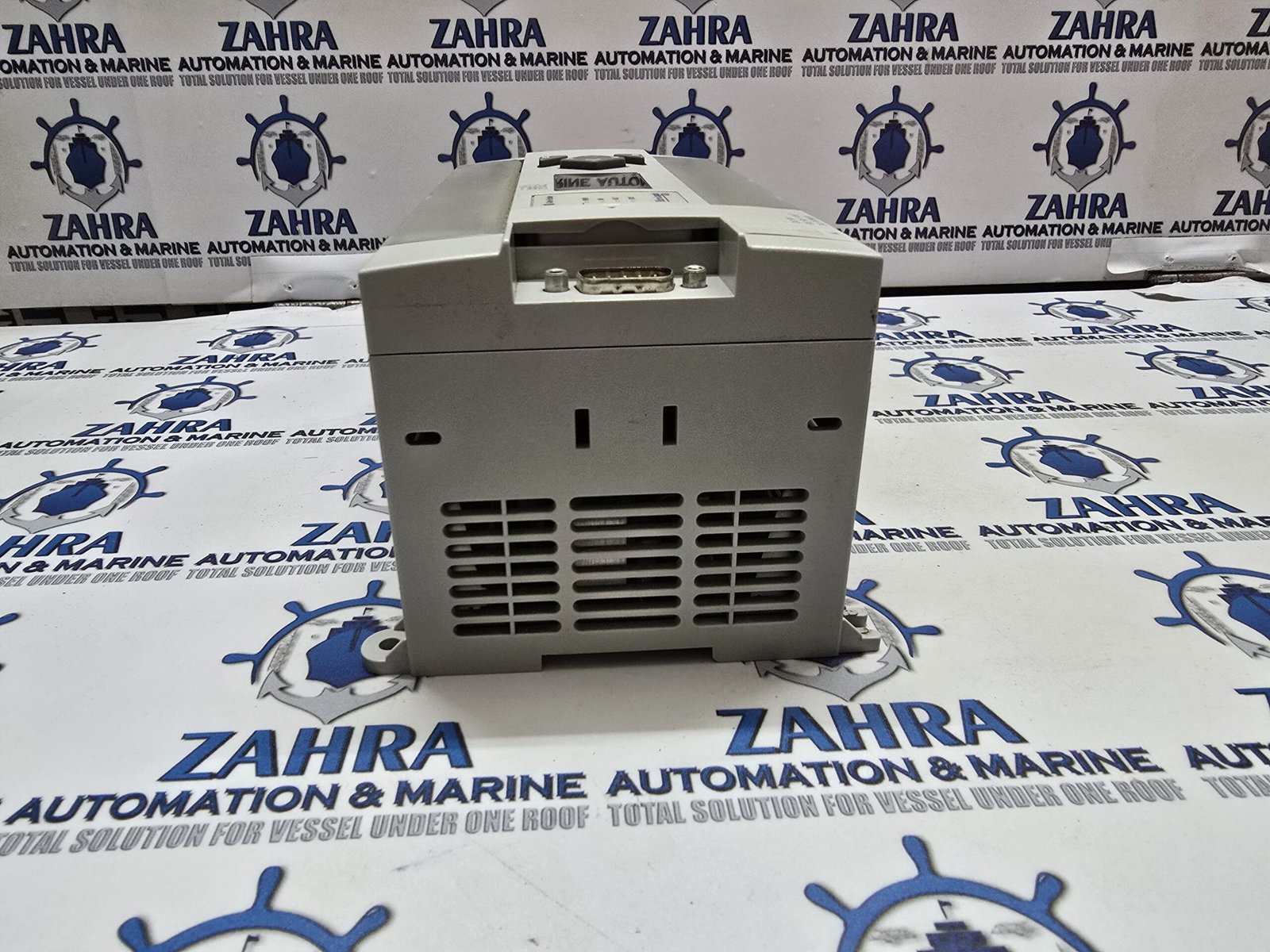

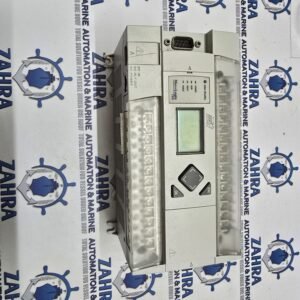

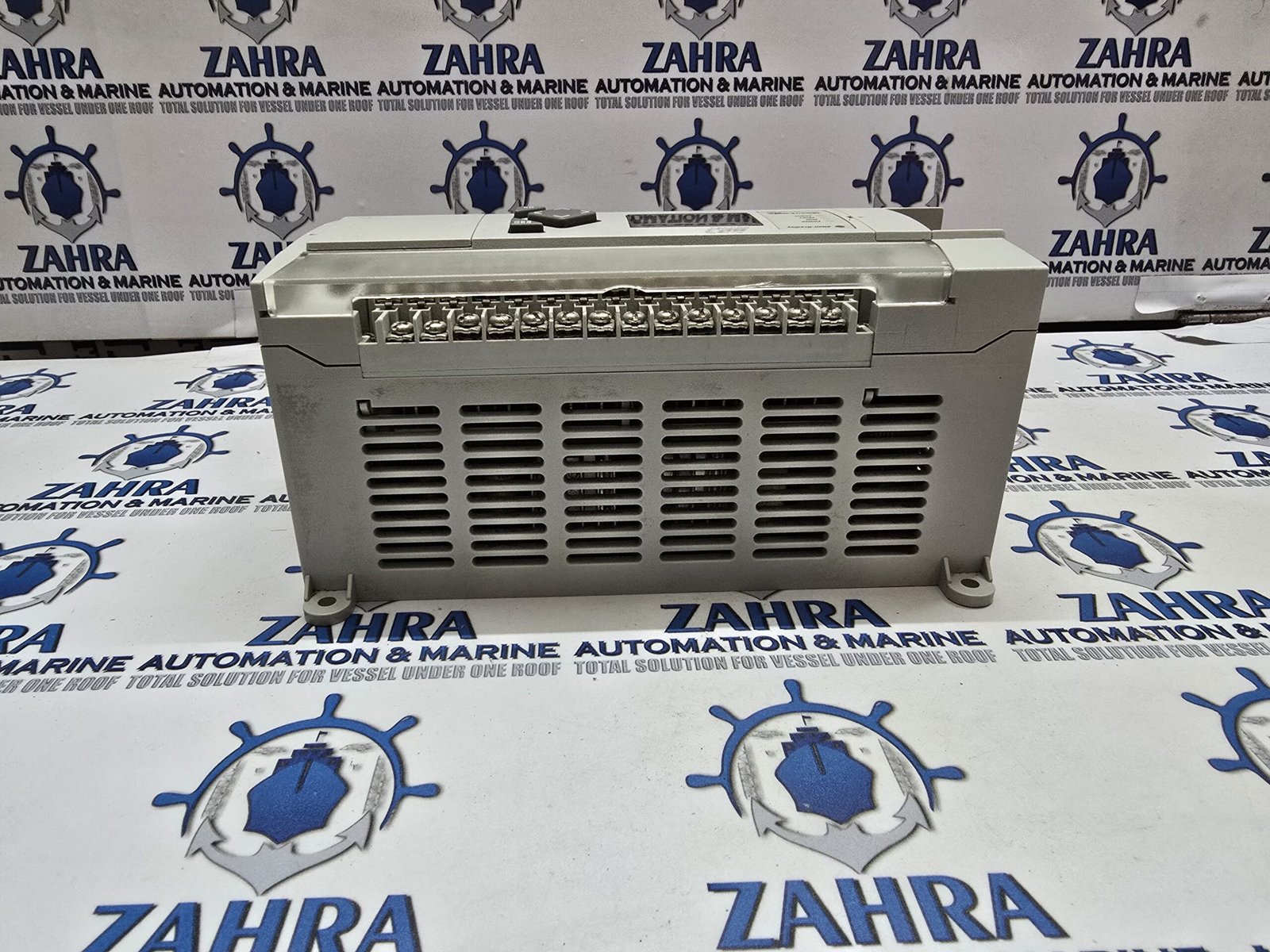

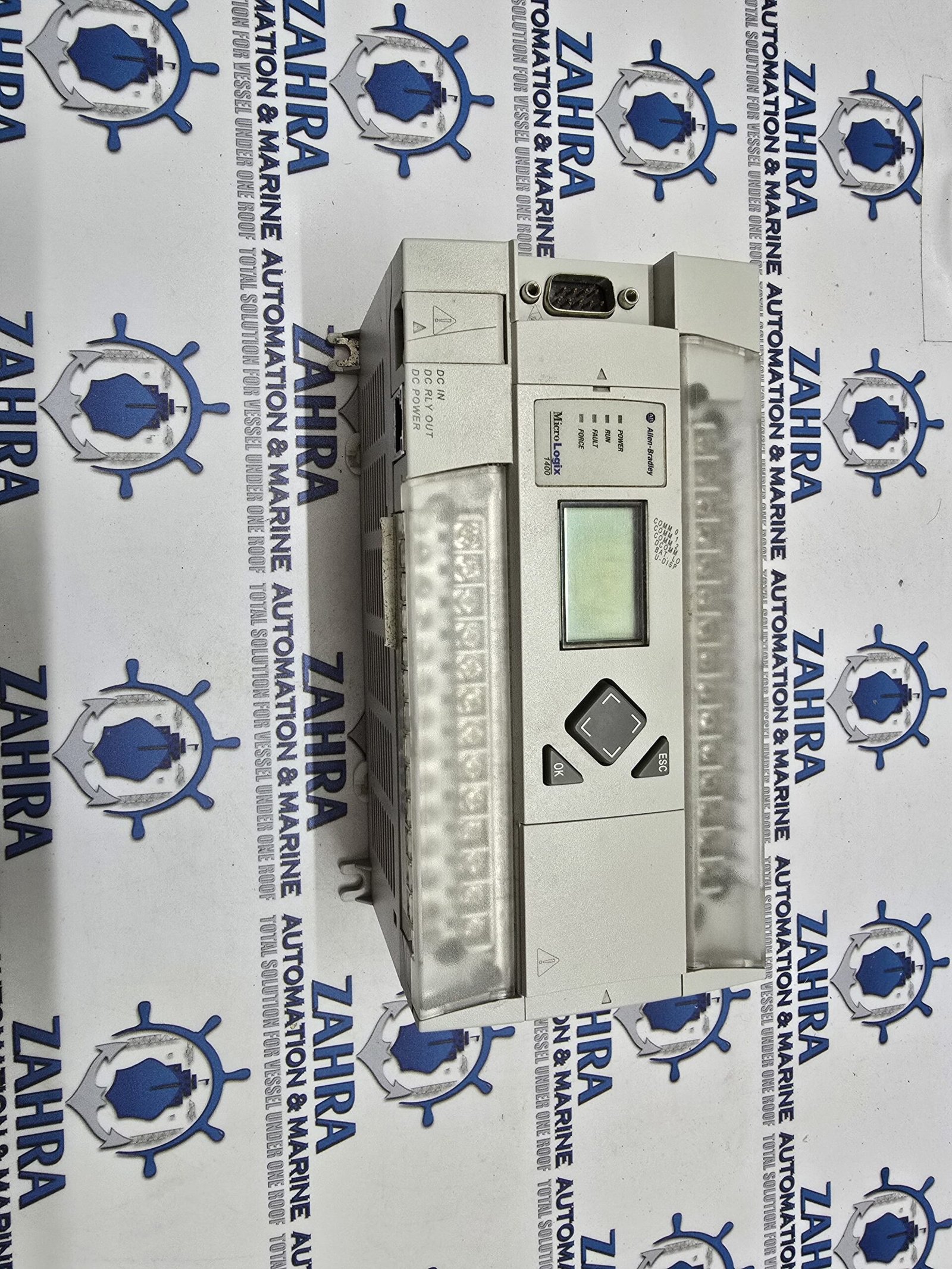

The Allen-Bradley MicroLogix 1400 (1766-L32BXB) is a high-performance, versatile compact PLC designed for small to mid-sized industrial applications. It is often considered the “Swiss Army Knife” of the MicroLogix family because it bridges the gap between simple micro-controllers and high-end modular systems like CompactLogix.

The L32BXB version is a “hybrid” model, combining fast DC inputs, high-speed counting, and a mix of relay and FET outputs.

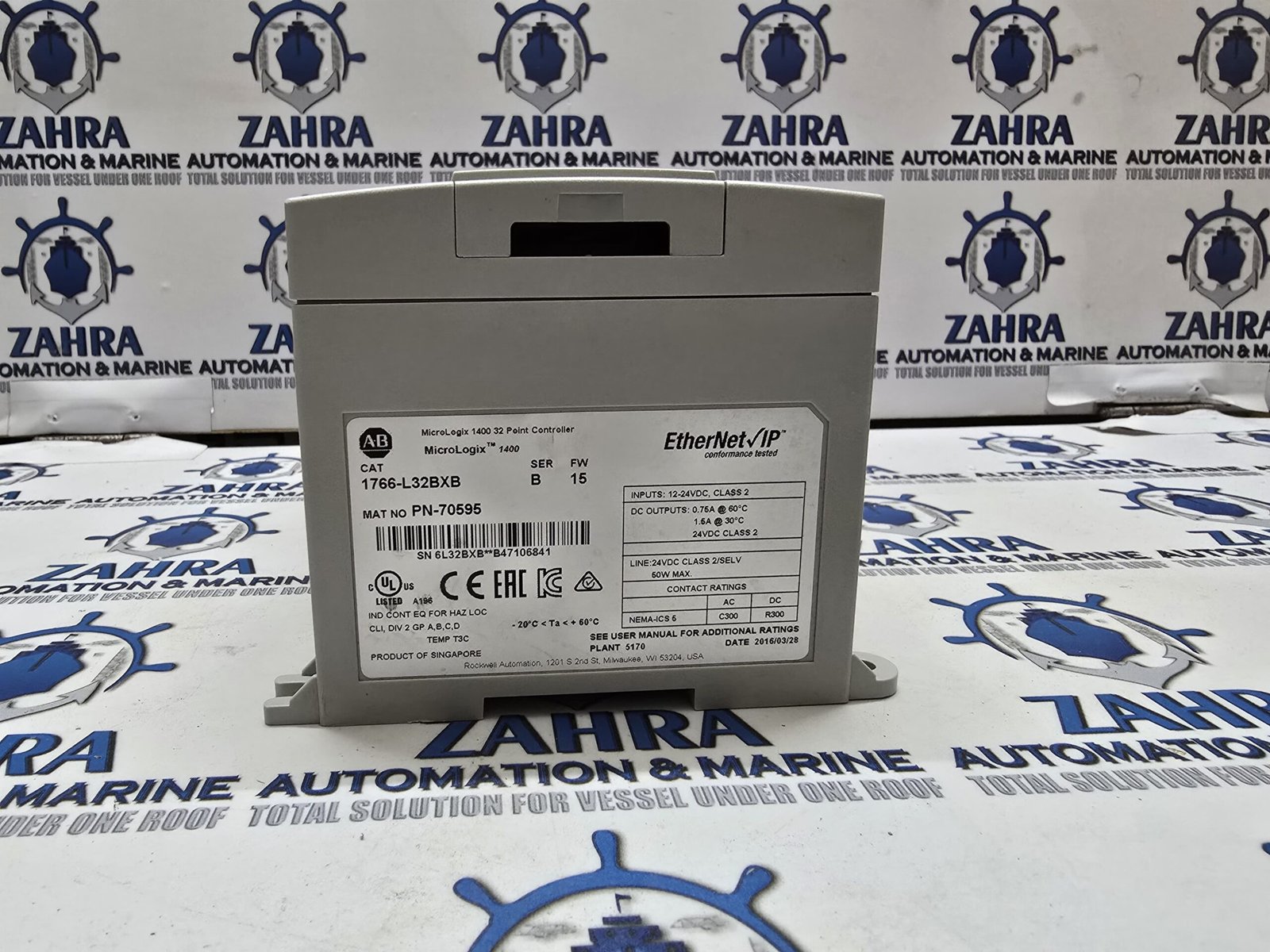

1. Catalog Number Breakdown: 1766-L32BXB

The model number identifies the specific power and I/O hardware:

• 1766: Bulletin number for MicroLogix 1400.

• L32: Total of 32 integrated I/O points.

• B: 24V DC Input Power.

• X: 24V DC Digital Inputs (Sink/Source).

• B: A combination of Relay and 24V DC FET outputs.

2. Technical Specifications

3. Integrated Communication Ports

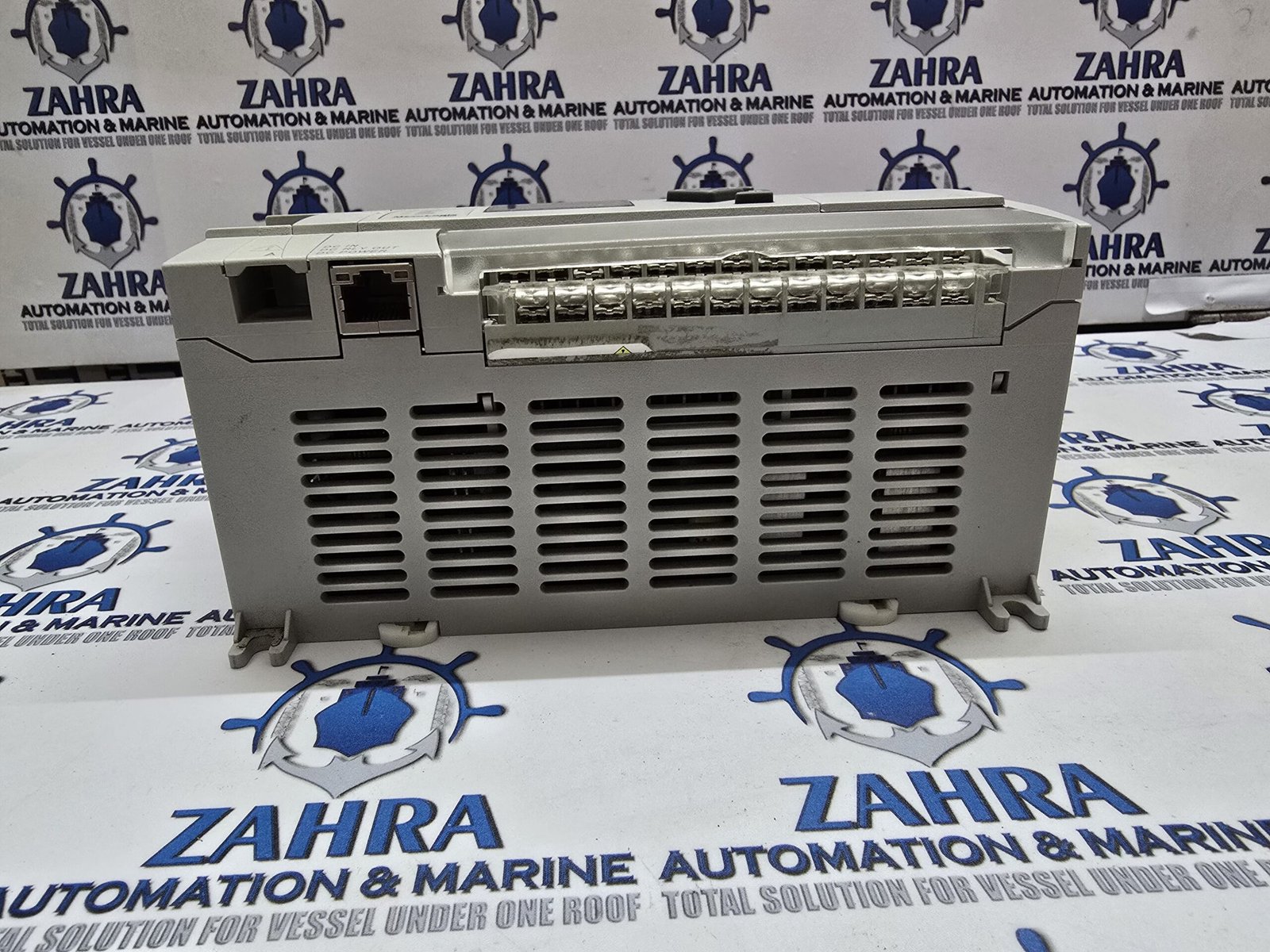

One of the 1400’s greatest strengths is having three simultaneous communication ports:

1. Ethernet/IP (RJ45): Supports messaging, DNP3 over IP, and web server capabilities.

2. RS-232 (9-pin D-sub): Isolated port for HMIs, modems, or DF1/Modbus RTU.

3. RS-485 (8-pin Mini-DIN): Non-isolated port for daisy-chaining multiple devices (DH-485 or Modbus).

4. Key Features & Capabilities

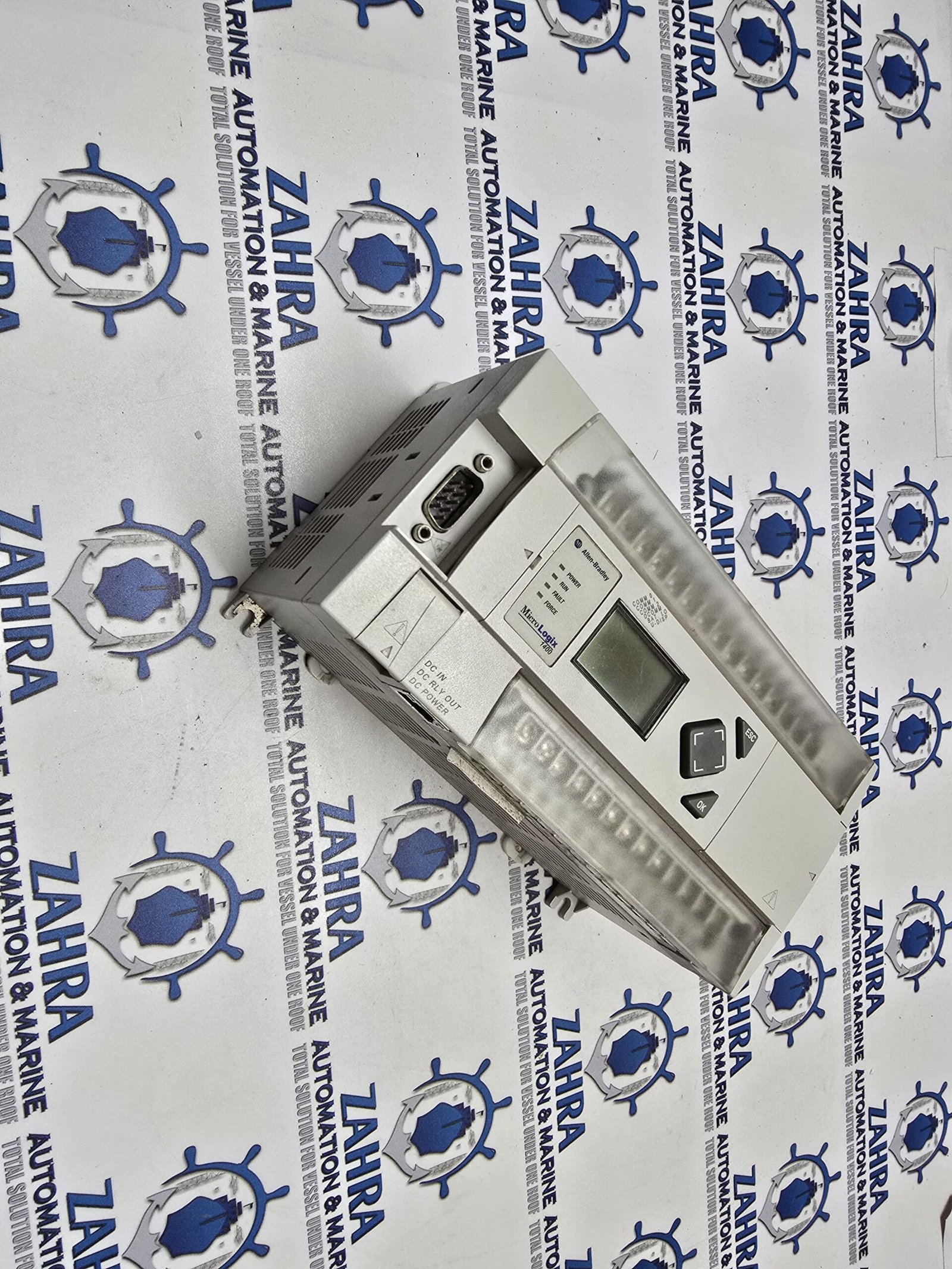

• Backlit LCD Screen: Allows you to monitor I/O status, view/edit data table values, and change the IP address or communication settings without a computer.

• Online Editing: Unlike the smaller MicroLogix 1100, the 1400 allows you to modify the program while the machine is running (Online Edits).

• Expansion: It can support up to seven 1762 expansion modules, allowing you to add specialized Analog, Thermocouple, or high-density Digital I/O.

• Real-Time Clock: Built-in for time-stamping events or scheduling operations.
