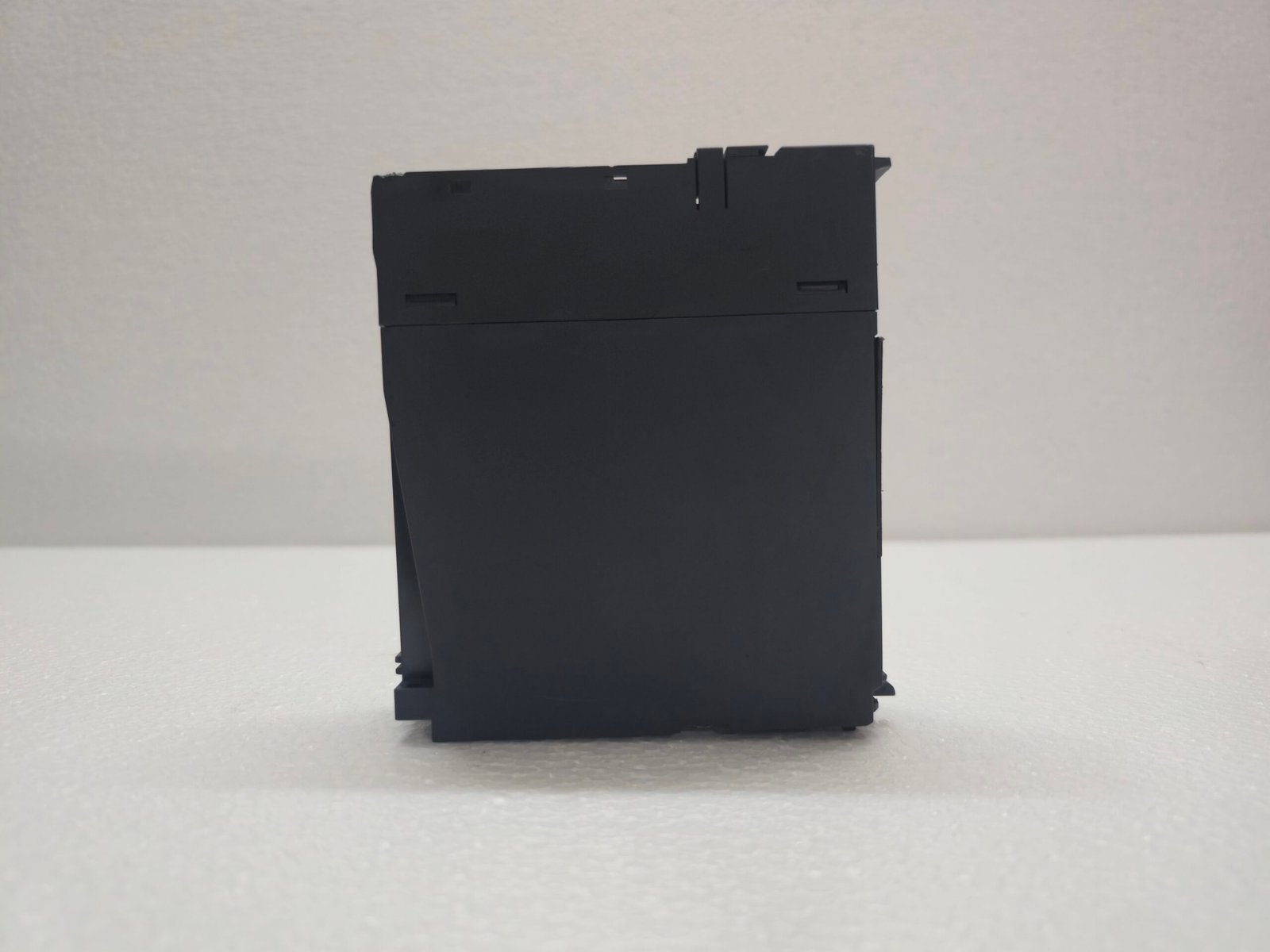

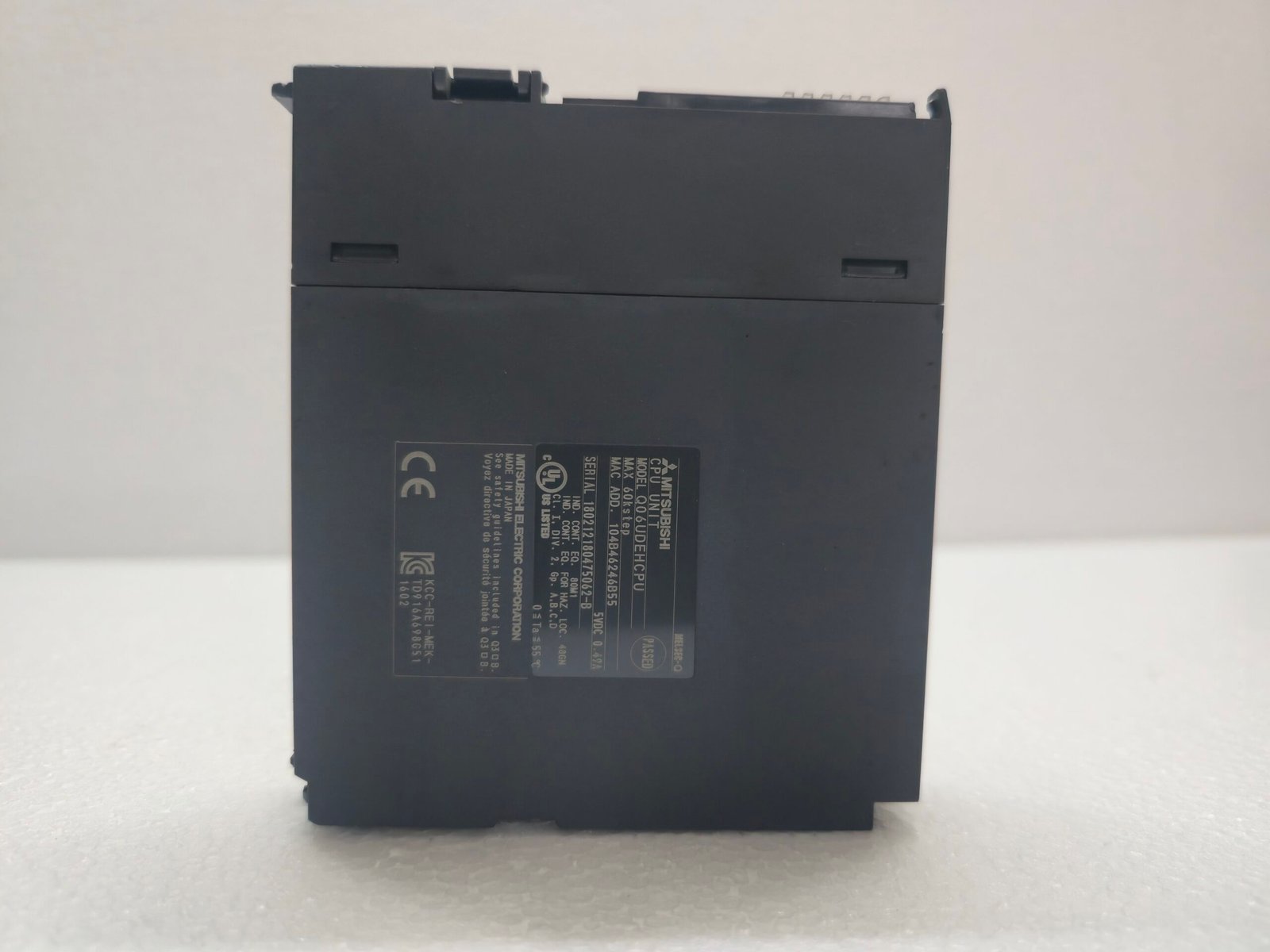

Mitsubishi Q06UDEHCPU Universal Model QCPU MELSEC-Q Series

The Mitsubishi Q06UDEHCPU is a high-performance Universal Model QCPU from the MELSEC-Q Series programmable logic controller (PLC) lineup. It features integrated Ethernet functionality, making it well-suited for scalable machine control, factory automation, and data-driven systems.

Key Technical Specifications

• Program Capacity: 60K steps

• Processing Speed: 9.5 ns execution time for basic sequence instructions (LD X0); 19 ns for MOV instructions.

• I/O Capacity: Supports up to 4,096 local I/O points and up to 8,192 points combined with remote I/O.

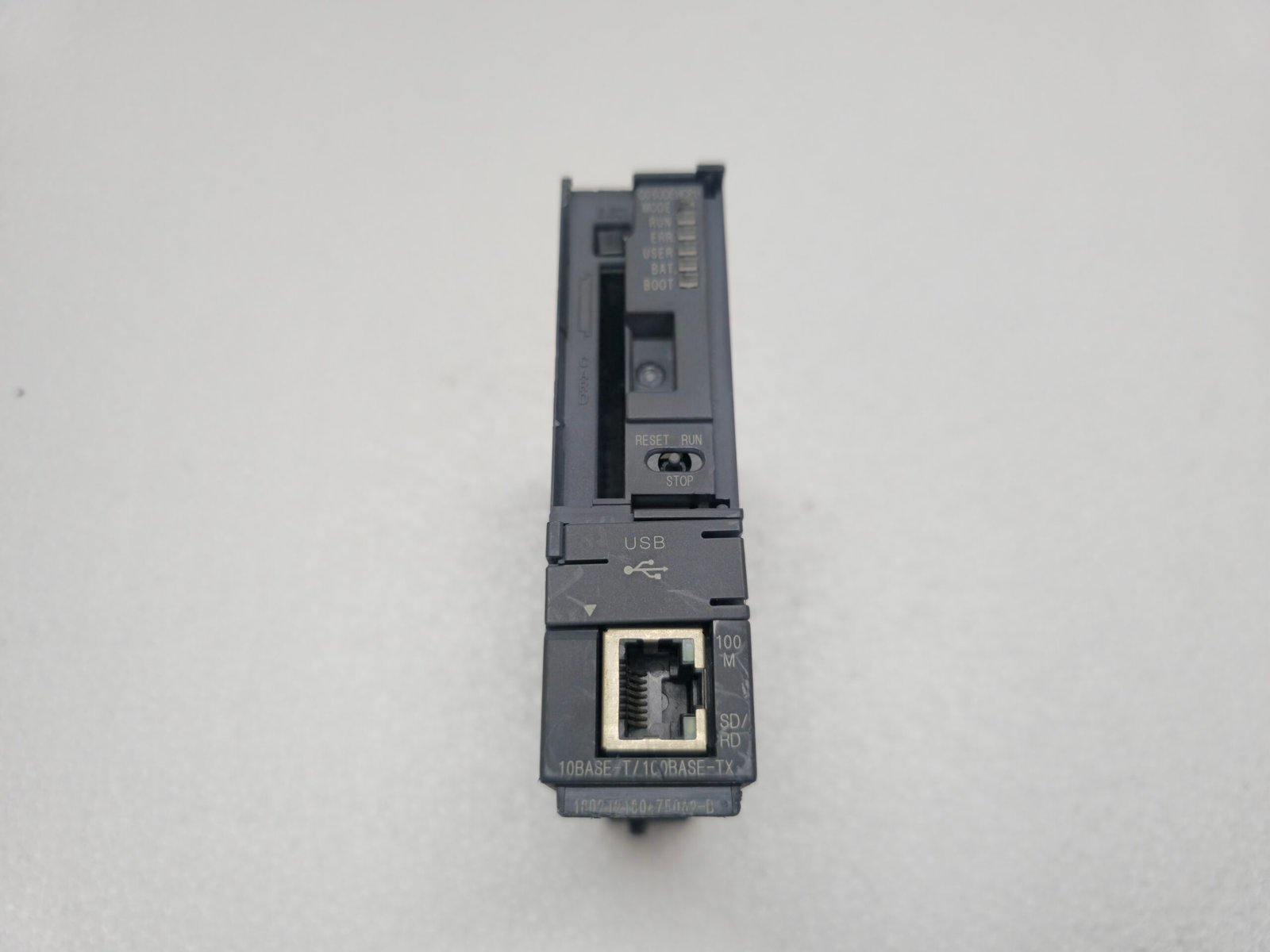

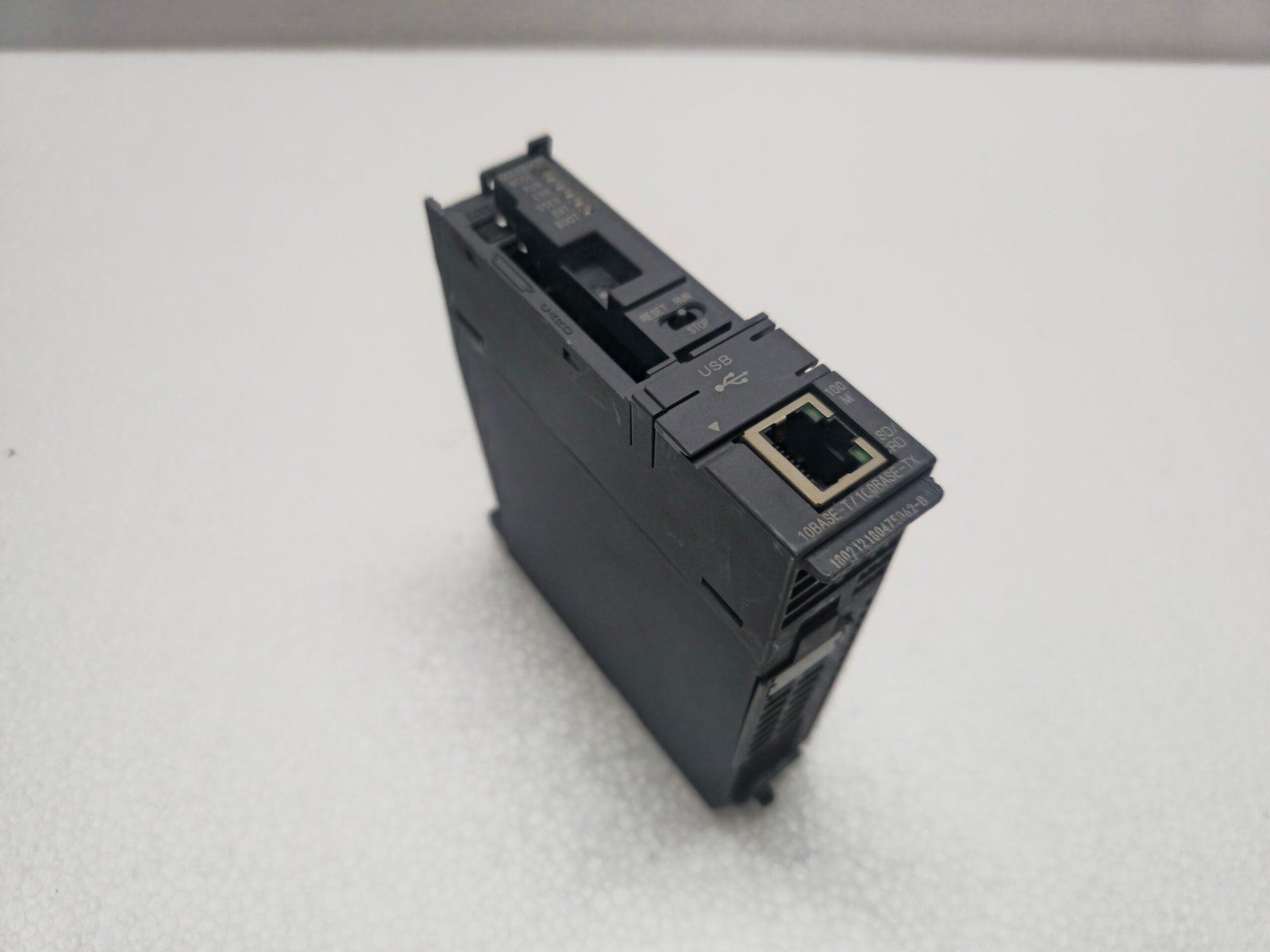

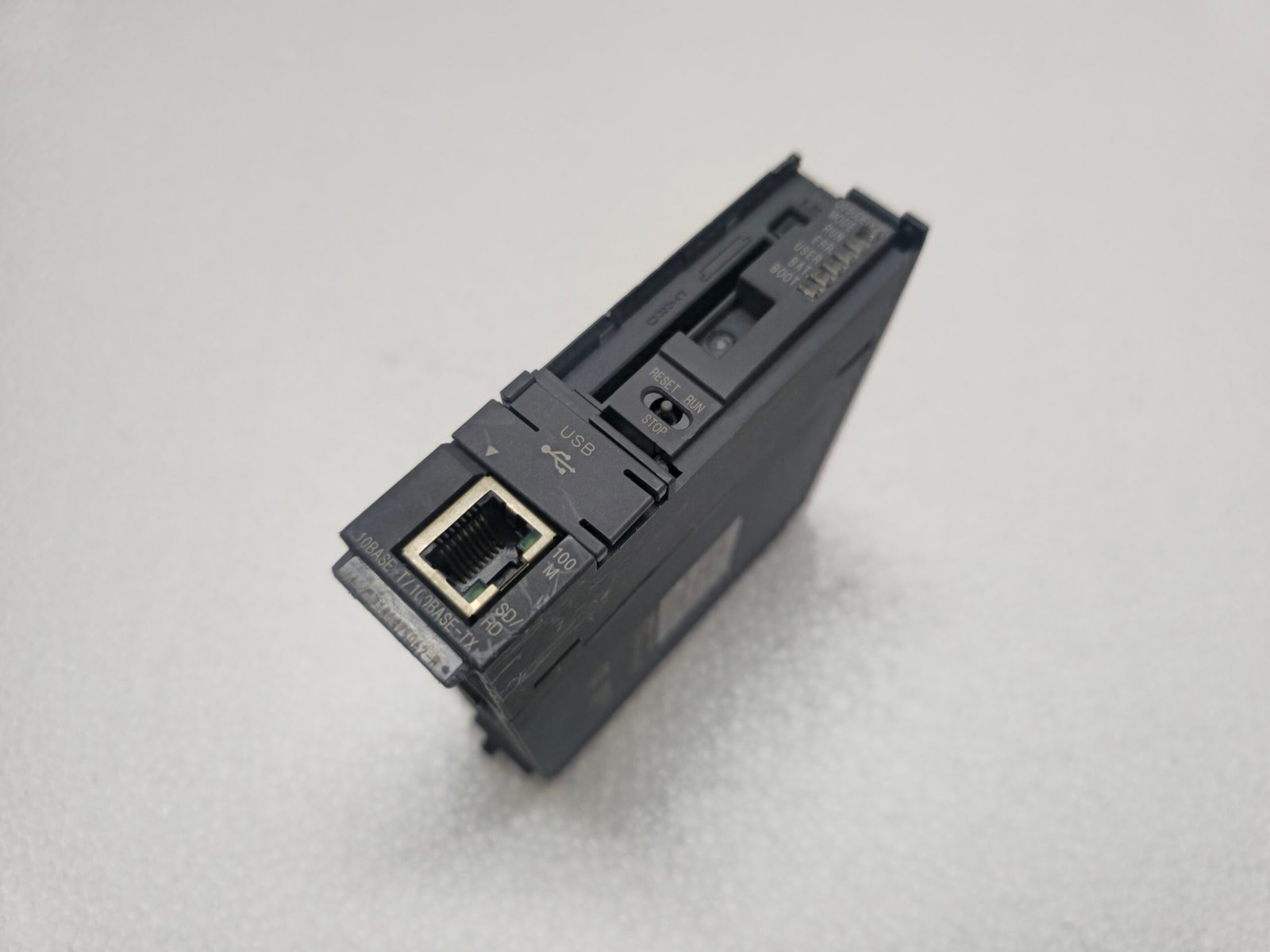

• Built-in Interfaces: 1 × Ethernet port (RJ45) and 1 × USB port (Mini-B) for easy programming and networking.

• Current Consumption: 0.39 A at 5 VDC.

• Dimensions & Weight: 98 mm (H) × 27.4 mm (W) × 89.3 mm (D); Weight: 0.22 kg.

• Marine Approvals: Fully certified by major shipping bodies including ABS, BV, DNV GL, LR, NK, and RINA, making it highly reliable for marine automation and offshore systems.

Lifecycle Status Note

Please note that Mitsubishi Electric has announced the discontinuation of this model, with official sales winding down through late 2026. The recommended direct successors or replacement paths from Mitsubishi include the high-speed Q06UDVCPU or migrating to the newer MELSEC iQ-R series with the R08CPU.
