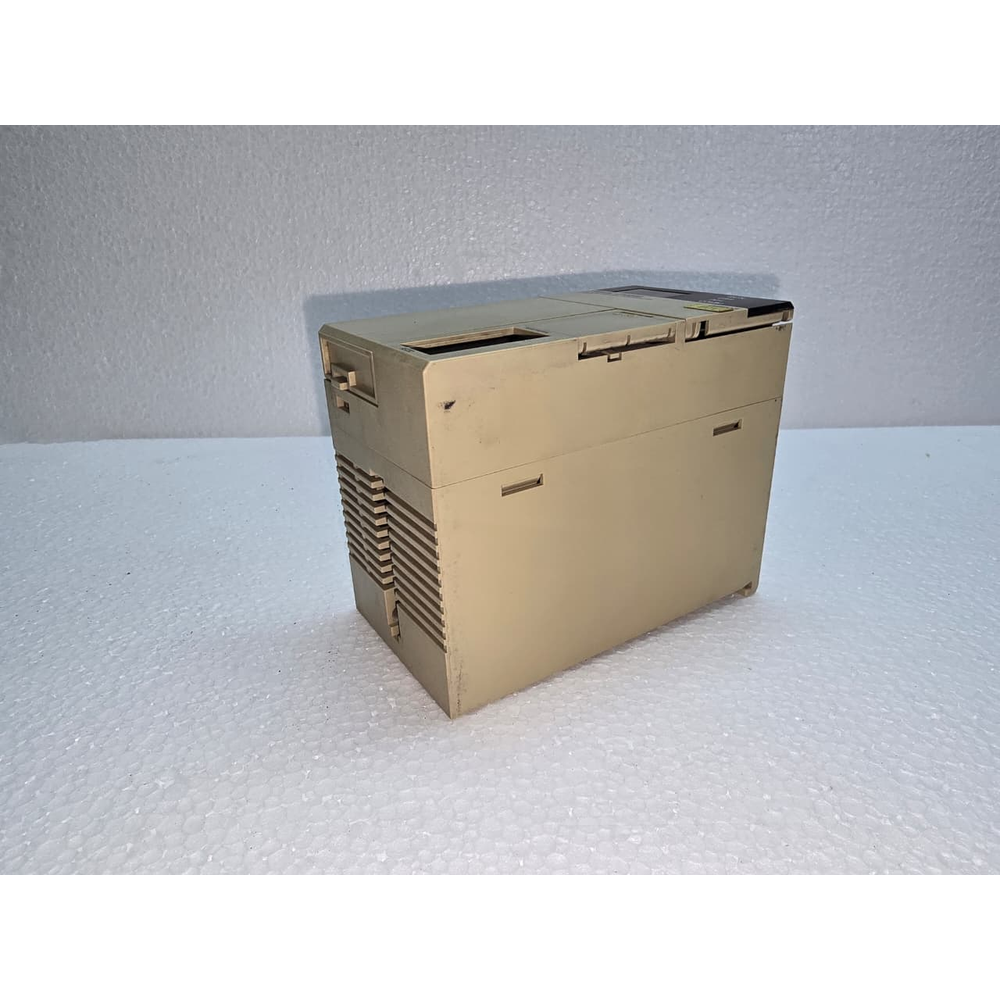

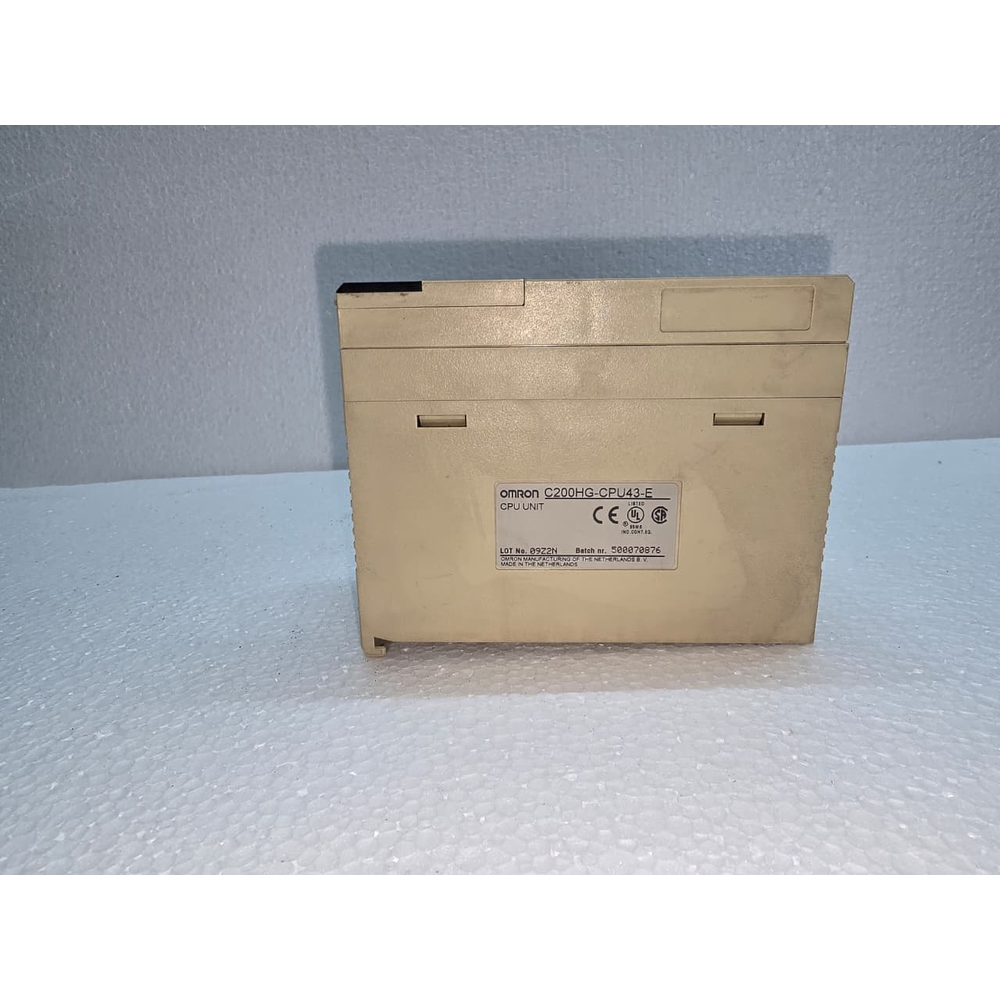

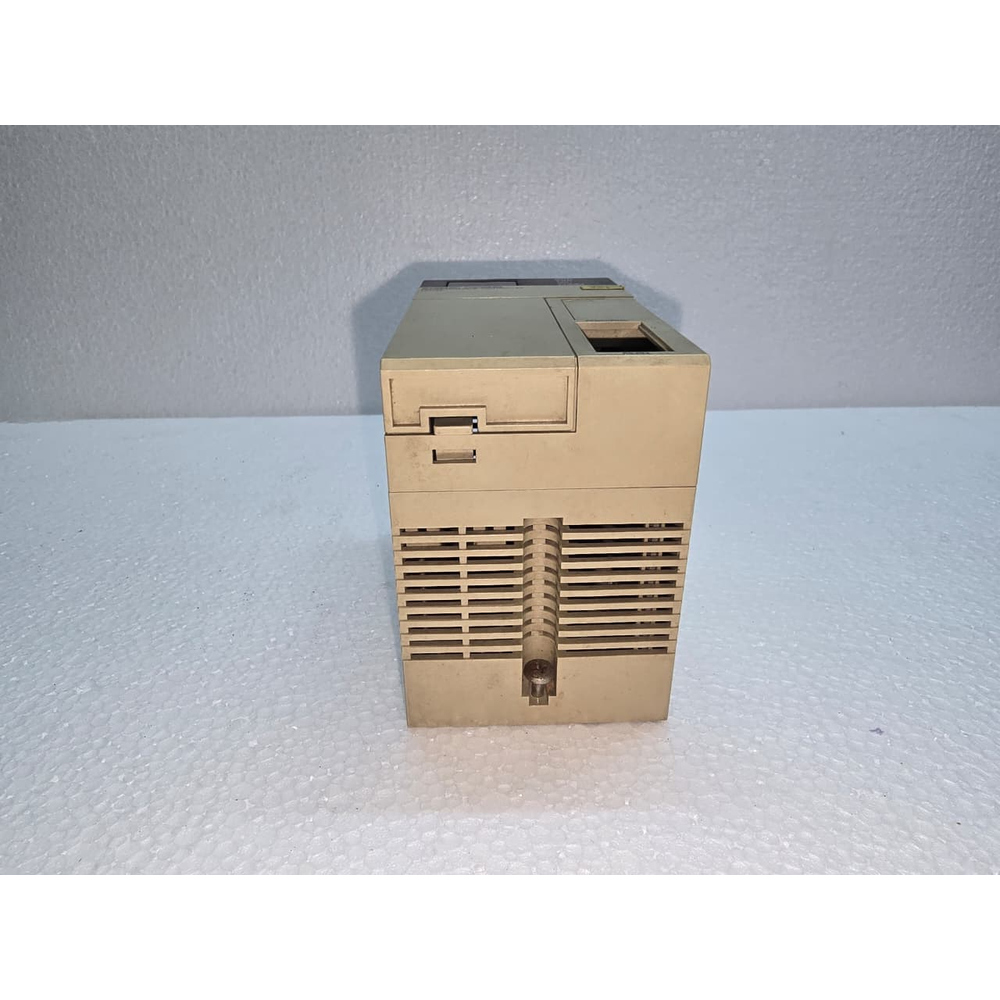

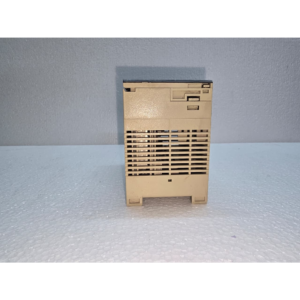

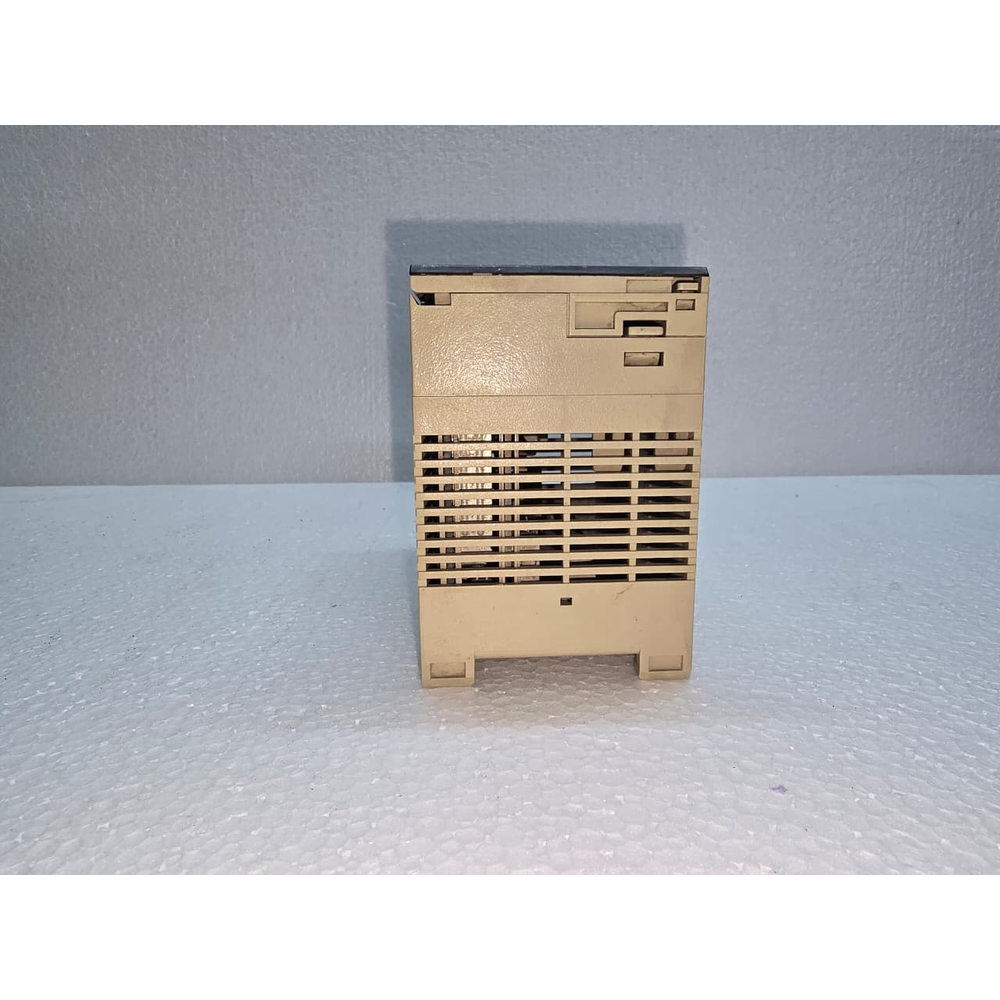

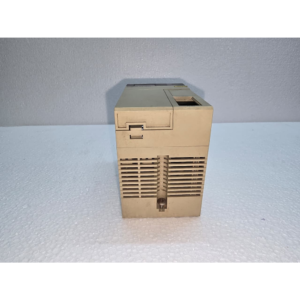

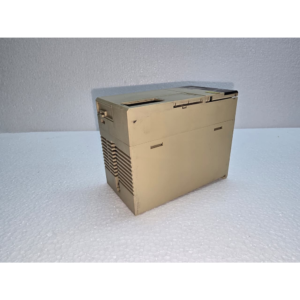

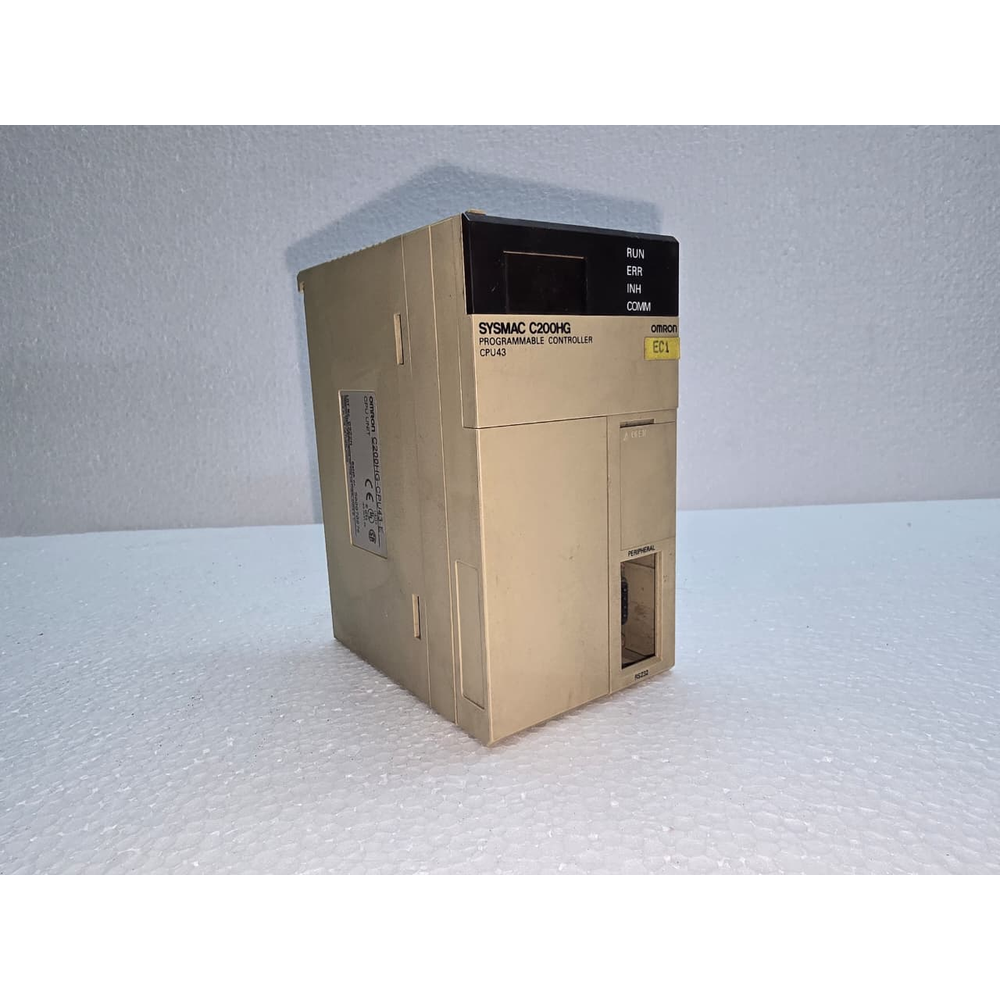

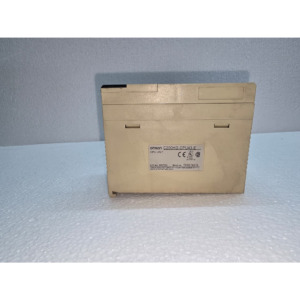

Omron C200HG-CPU43-E

the Omron C200HG-CPU43-E is a high-performance CPU module from the SYSMAC C200H Alpha (α) series. It was a flagship “large-scale” PLC system during its peak, known for its modularity and high processing speed. Even today, it remains in service in many established factories due to its extreme reliability.

The “HG” signifies the high-speed version of the C200H series, and the “43” indicates the specific memory and instruction set capabilities.

1. Performance and Capacity

The C200HG series was designed to handle complex machine control and large-scale networking.

• Program Capacity: 15.2K words (UM).

• Data Memory: 6K words (DM).

• Processing Speed: 0.15 µs for basic instructions (LD), making it significantly faster than the standard C200H or C200HS models.

• I/O Capacity: Supports up to 880 local I/O points and up to 1,184 points when using remote I/O.

2. Connectivity and Expansion

The CPU43 is a “modular” CPU, meaning it relies on a backplane (rack) but also features dedicated slots for communication.

• Peripheral Port: Used for connecting a Handheld Programming Console or the CQM1-CIF02 cable for PC programming.

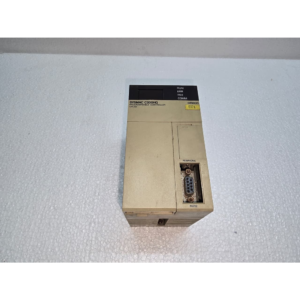

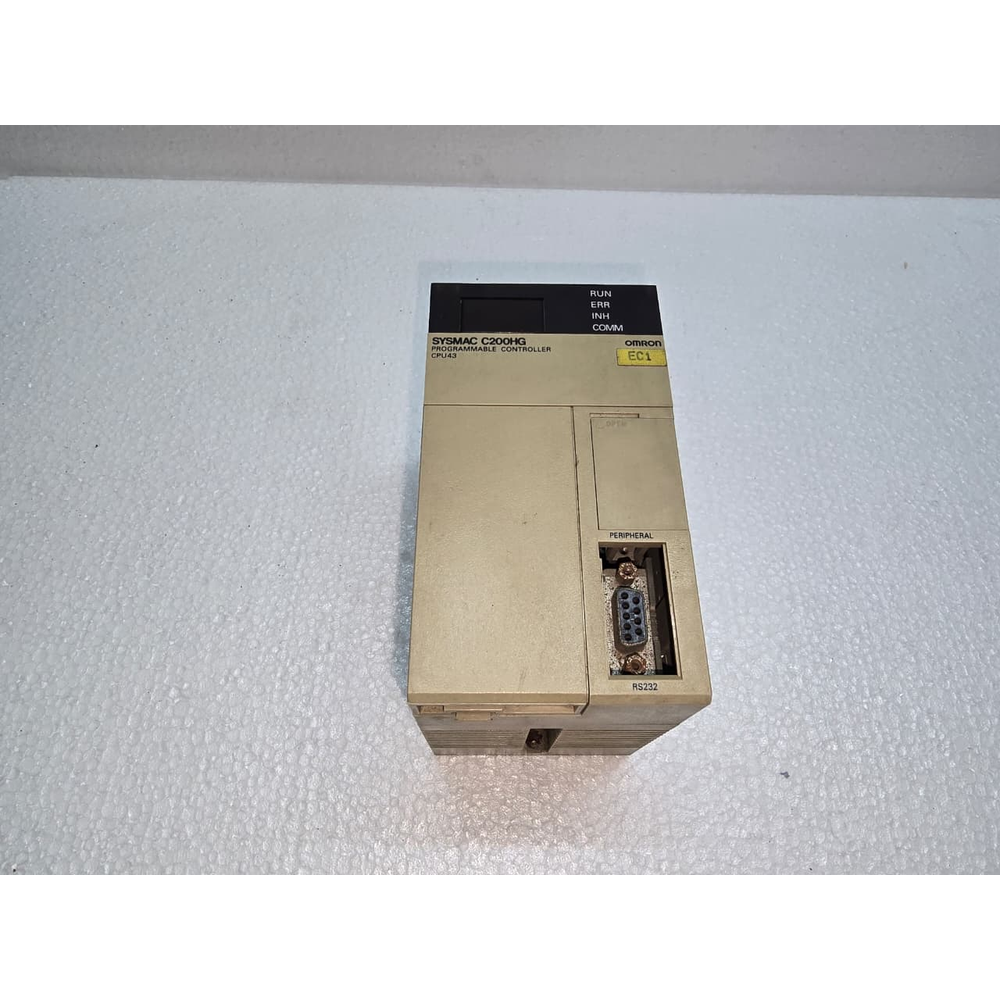

• Built-in RS-232C Port: Unlike lower models, the CPU43 includes a built-in 9-pin serial port for direct connection to an HMI (like Omron NT series) or a PC.

• Communication Boards: It has a slot for an optional Communication Board (e.g., C200HW-COM02/04), which adds extra RS-232, RS-422, or RS-485 ports.

• Protocol Support: Supports Host Link, NT Link (for high-speed HMI), and standard serial communication.

3. Technical Specifications

4. Key Advantages

• Backward Compatibility: It can use almost all existing C200H Special I/O modules (High-speed counters, Analog, Position control), making it a popular choice for upgrading older C200H systems.

• Advanced Math: Capable of 32-bit floating-point math, which is necessary for precision motion control and complex sensor scaling.

• Interrupt Tasks: Supports high-speed interrupt inputs, ensuring that critical machine events are processed immediately regardless of the program scan time.

5. Maintenance and Status (Legacy Hardware)

• Lifecycle: This model is officially discontinued by Omron. Support and spare parts are primarily available through the refurbished market.

• Battery Warning: If the “ALM” or “ERR” LED is flashing red, check the battery. If the battery dies while the power is off, the program stored in RAM will be permanently lost.

• Replacement: The modern replacement for the C200H Alpha series is typically the Omron CS1 or CJ2 series, which requires a conversion of the wiring and the program.
