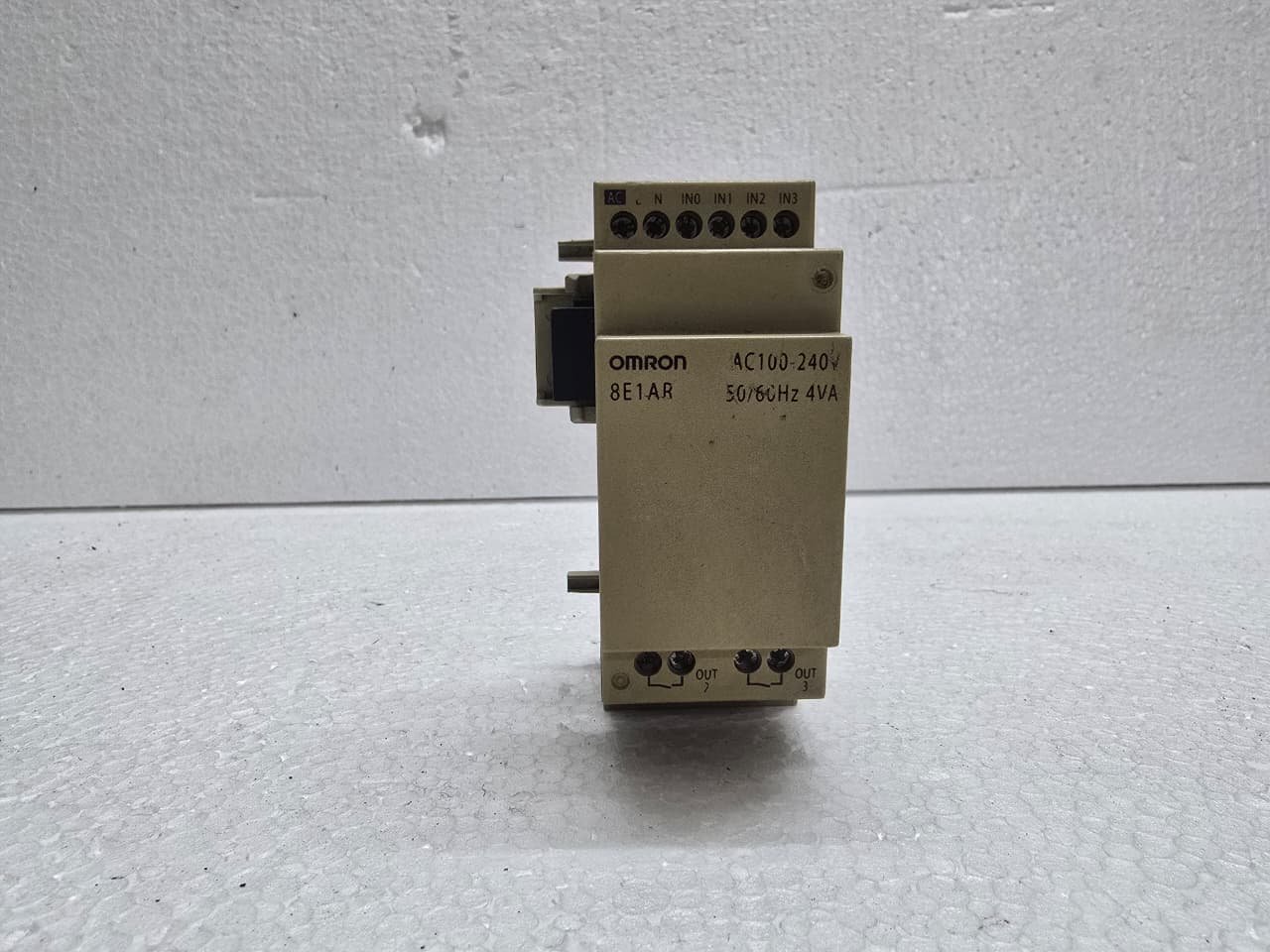

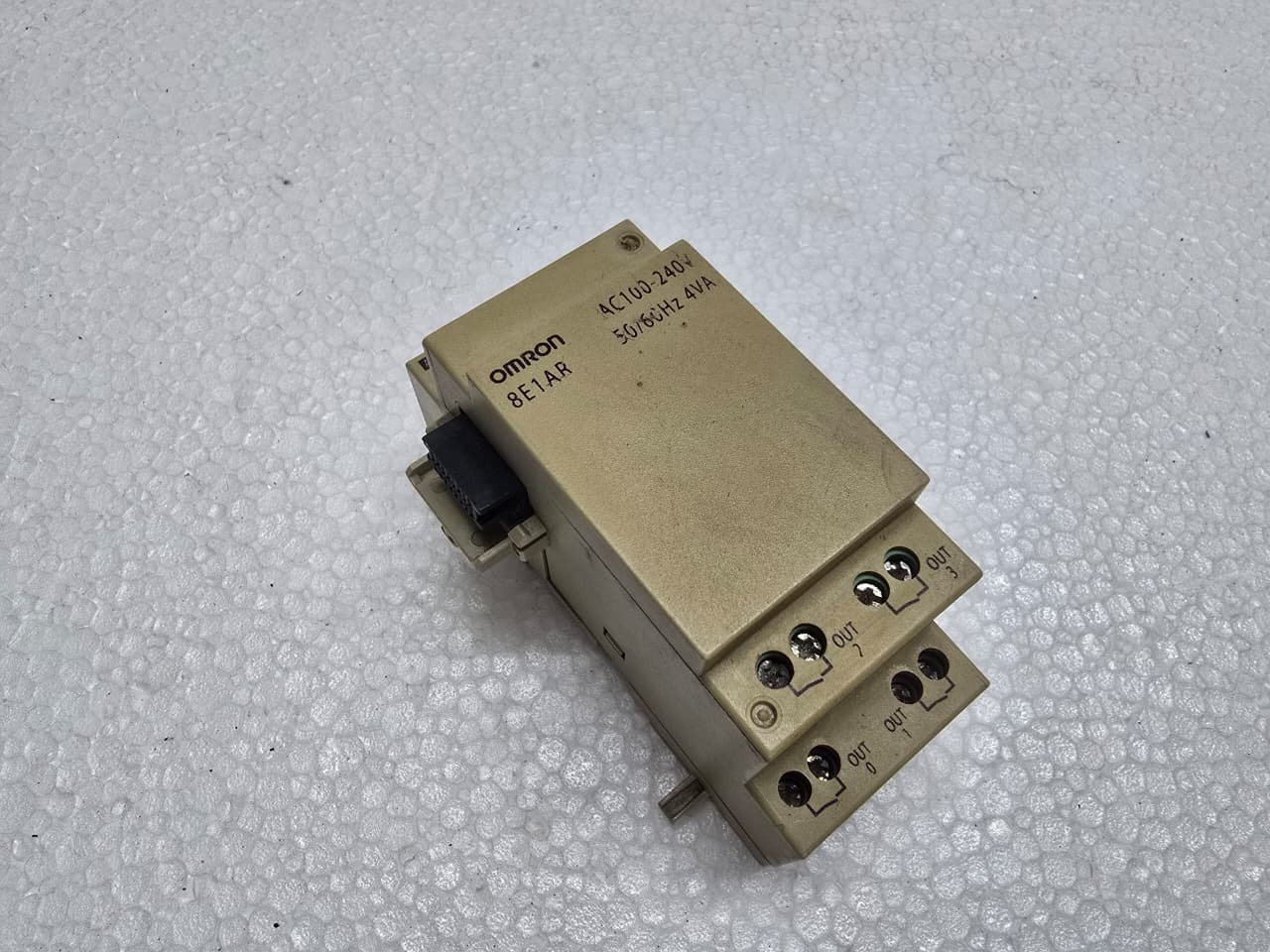

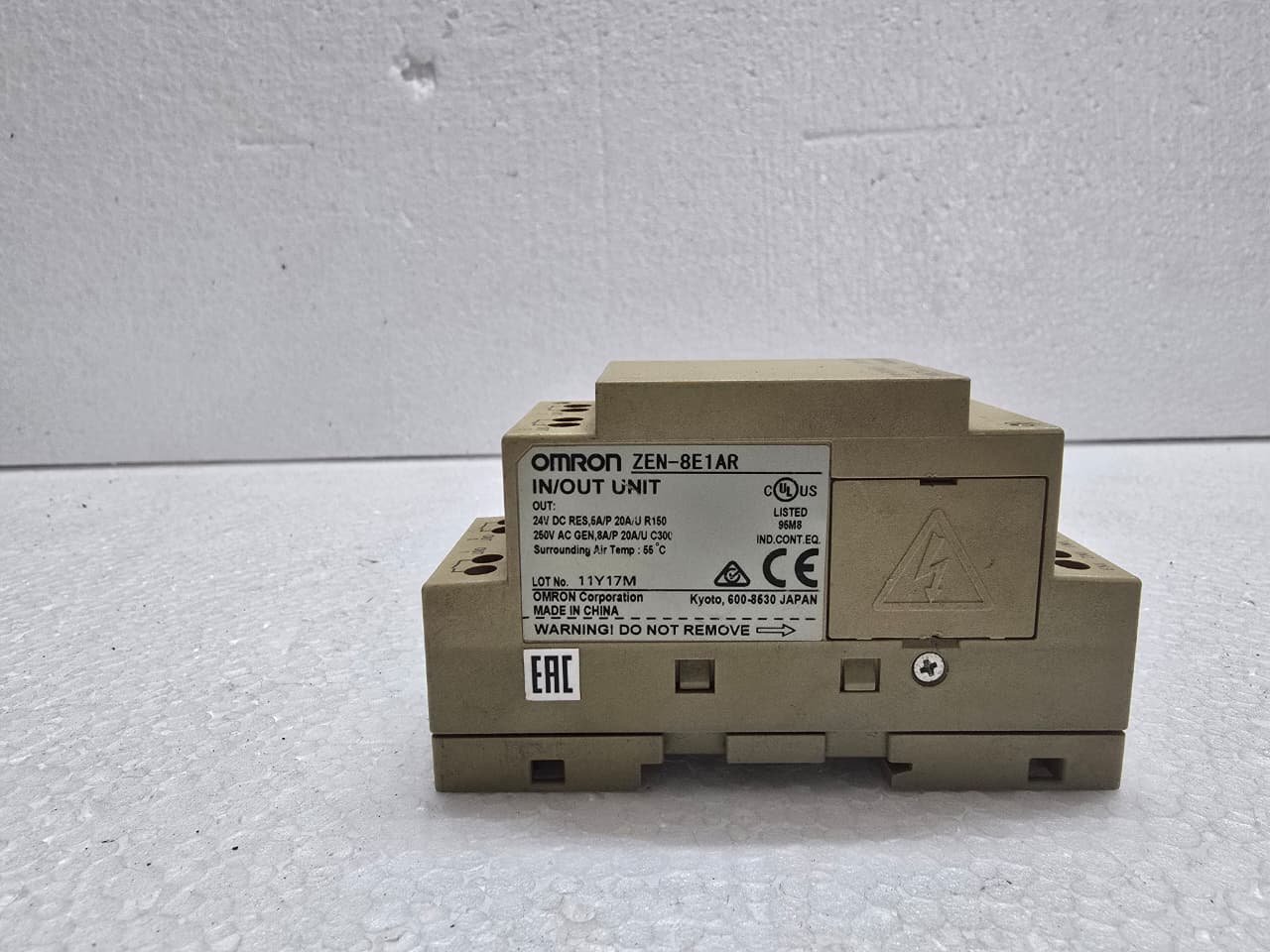

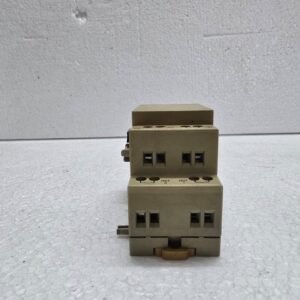

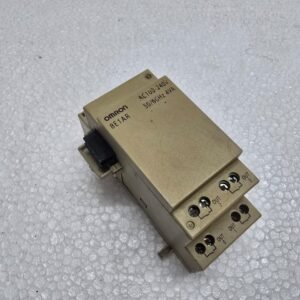

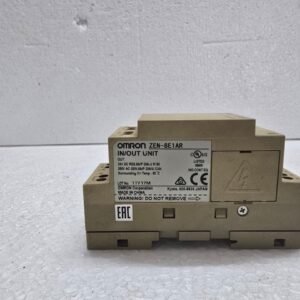

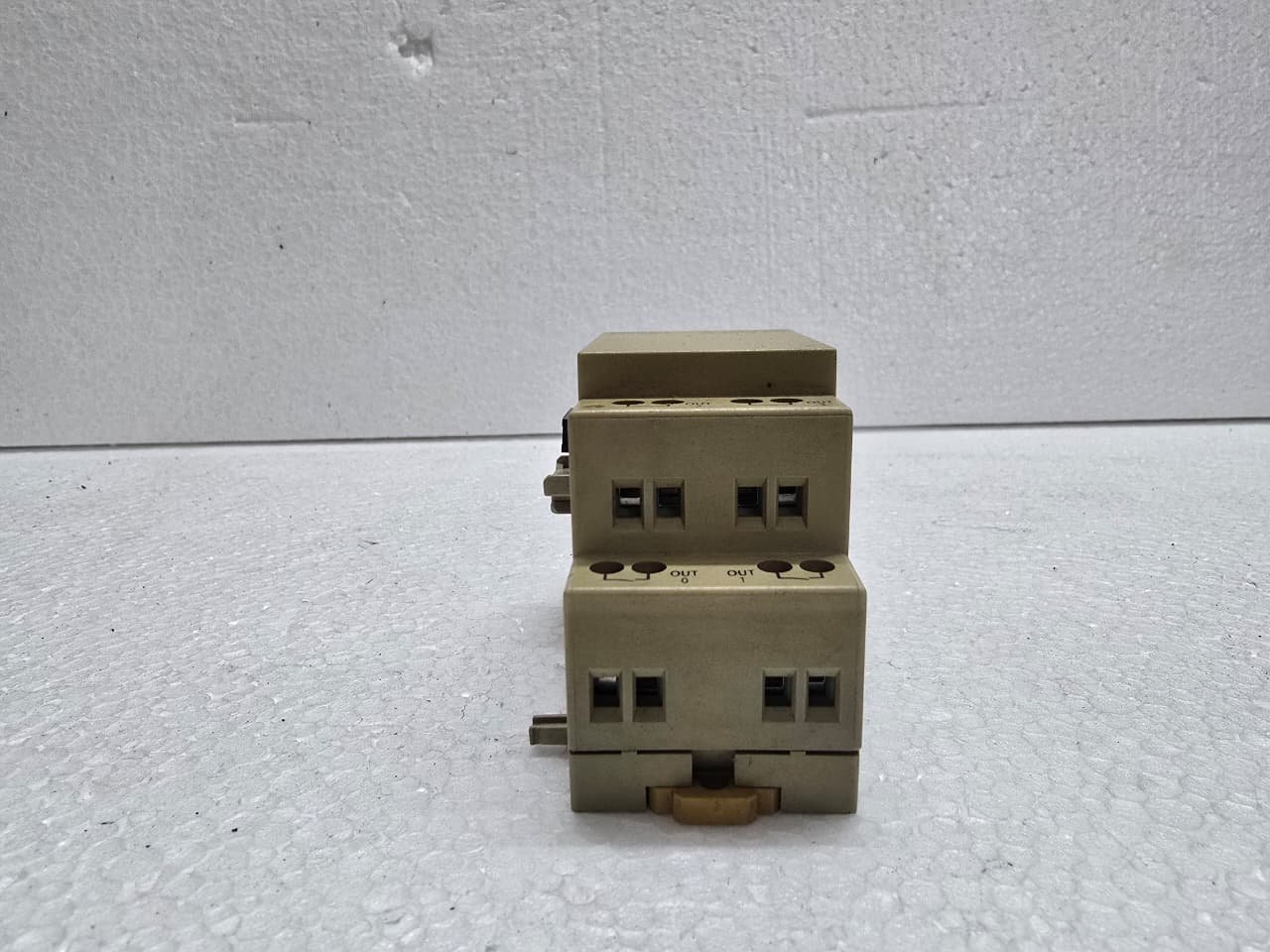

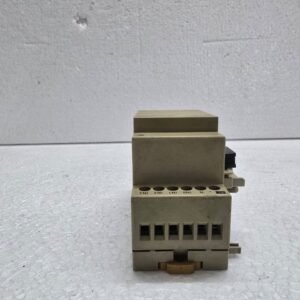

Omron ZEN-8E1AR

The Omron ZEN-8E1AR is an I/O expansion unit for the ZEN series of programmable relays (often called “smart relays”). Since the base ZEN CPU units have a limited number of inputs and outputs, this module is used to increase the capacity of your system.

The “8E1AR” code specifically tells us the I/O count, the power type, and the output hardware.

1. Key Technical Specifications

The “8E1” indicates 8 additional I/O points (4 Inputs and 4 Outputs).

2. Understanding the Part Number

• 8E1: 4 Inputs / 4 Outputs expansion.



• A: AC Inputs (100–240VAC).



• R: Relay Outputs.

3. Connection and Expansion Limits

The ZEN system is modular, but it has strict limits on how much you can expand:

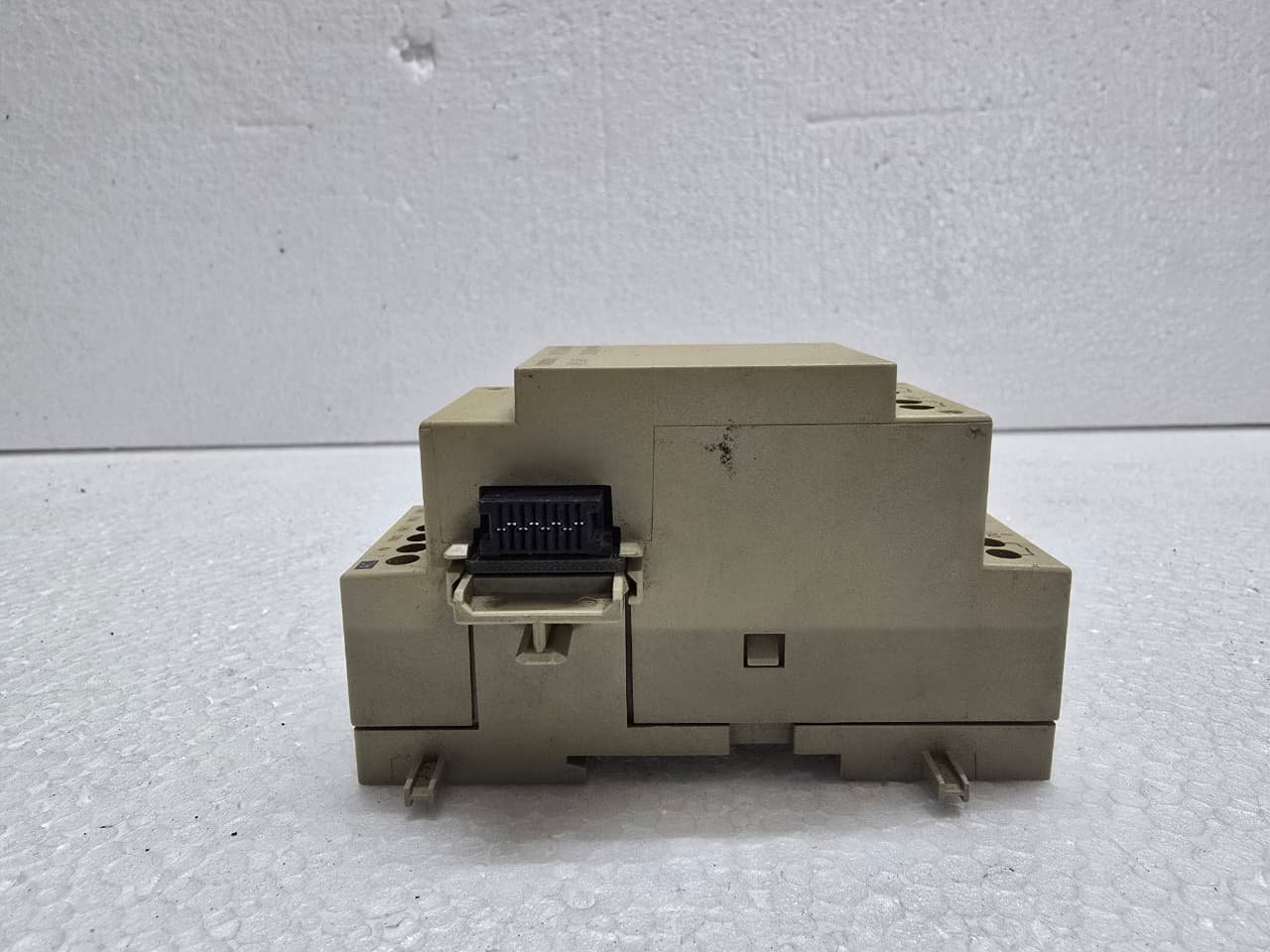

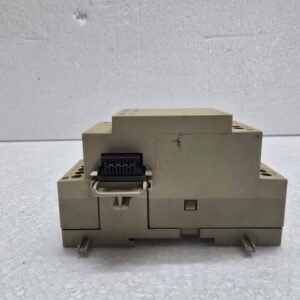

• Physical Connection: The expansion unit snaps onto the right-hand side of the ZEN CPU unit. You must remove the small plastic cover on the CPU’s right side to reveal the expansion bus.

• Maximum Expansion: You can connect up to 3 expansion units to a single CPU.

• I/O Addressing: The inputs and outputs on the expansion units are automatically addressed by the CPU (e.g., if the CPU ends at I5, the first expansion starts at I6).

4. Wiring and Terminal Layout

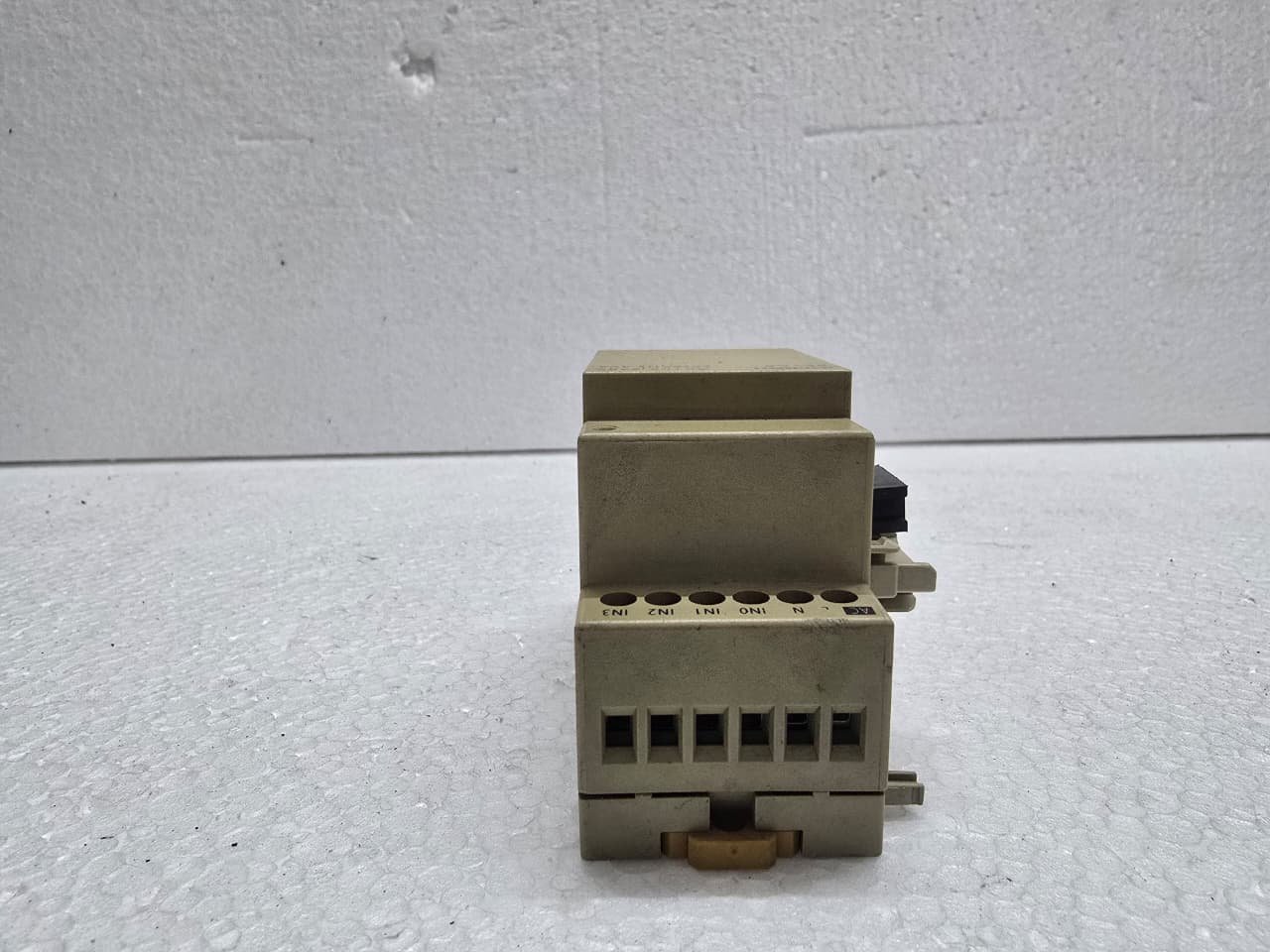

• AC Inputs: These are designed for high-voltage signals. You can wire your pushbuttons or limit switches directly using the same AC phase that powers the PLC.

• Relay Outputs: These are “dry contacts.” They act like simple switches. Because they are rated for 8A, they can often drive small motors, solenoids, or heaters directly without needing an intermediate “slave” relay.

5. Application Tips

• Mixing Voltages: Ensure your expansion unit matches the voltage of your CPU unit. An AC expansion unit (8E1AR) should typically be paired with an AC CPU unit (e.g., ZEN-10C1AR-A-V2) to keep cabinet wiring consistent.

• Inductive Loads: If you are switching highly inductive loads (like large contactor coils), it is best practice to install an external surge suppressor (RC circuit) across the load to extend the life of the ZEN’s internal relays.

• Programming: No special setup is required in the ZEN Soft software; the software automatically recognizes the additional I/O once the hardware is connected.
