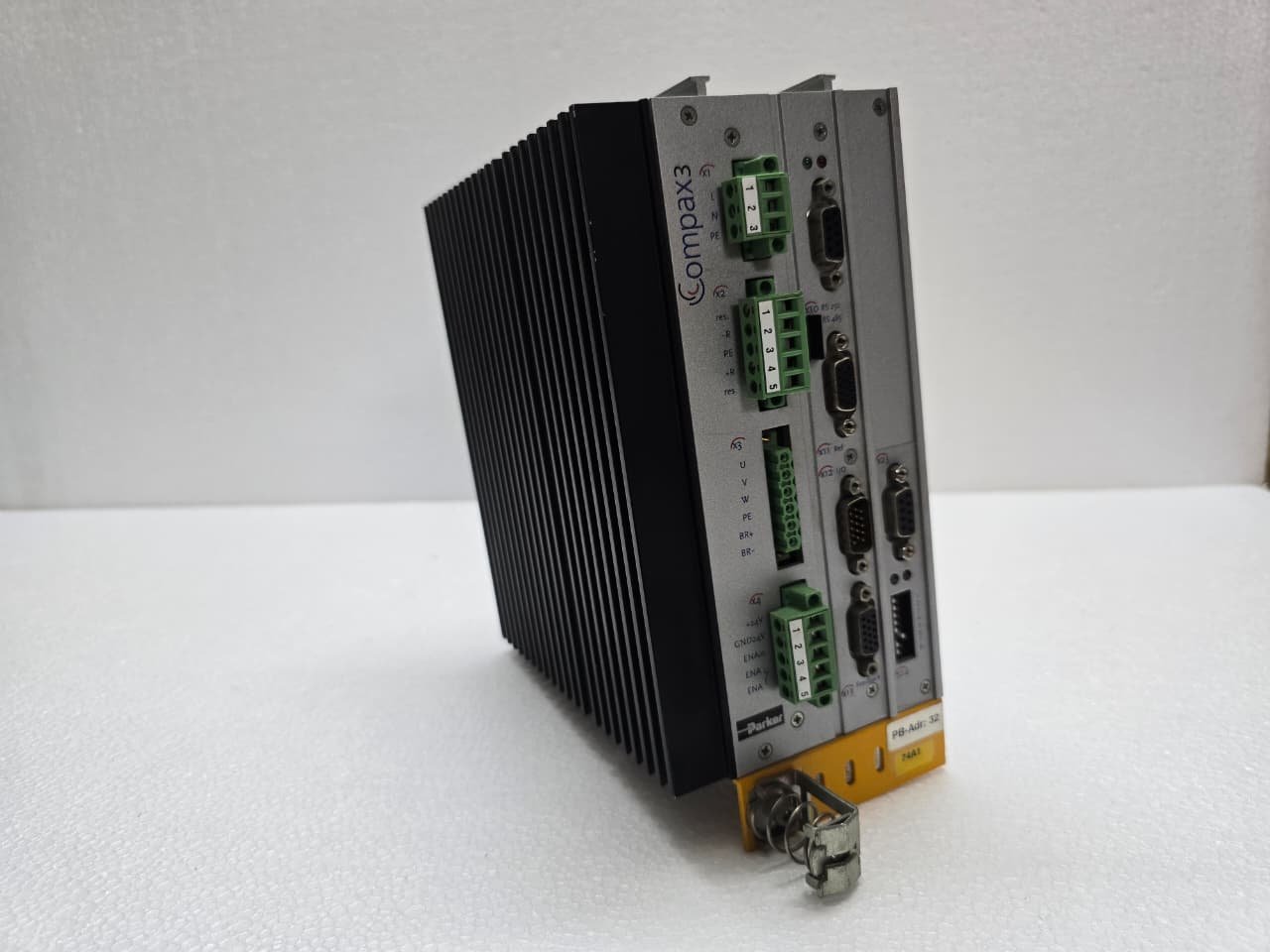

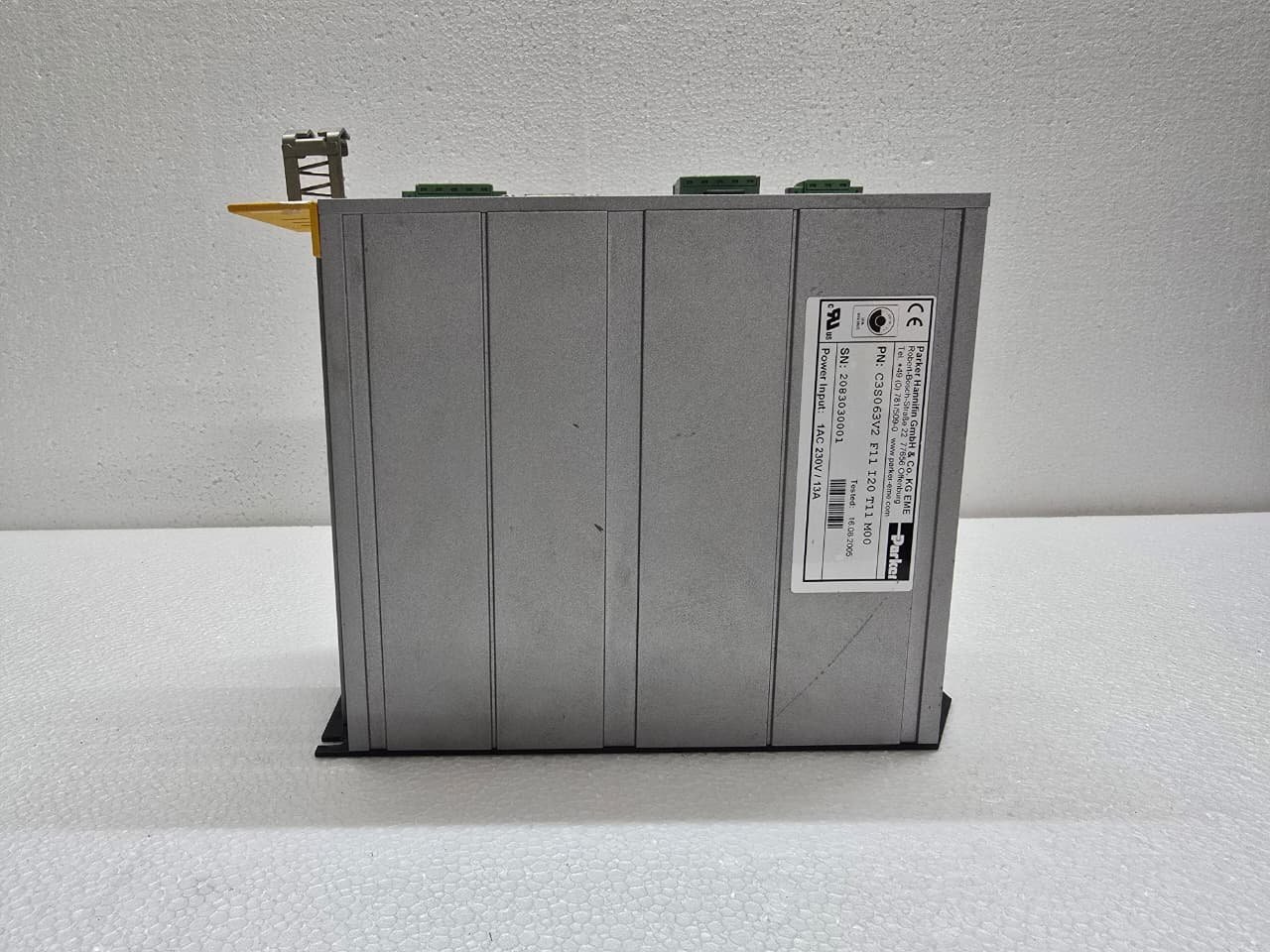

The C3S063V2F11I20T11M00 is a highly capable single-axis high-performance industrial servo drive from Parker Hannifin’s Compax3 series.
Breaking down this specific part number alphanumeric code configures exactly what hardware options, communication interfaces, and software capabilities are baked into this drive layout:

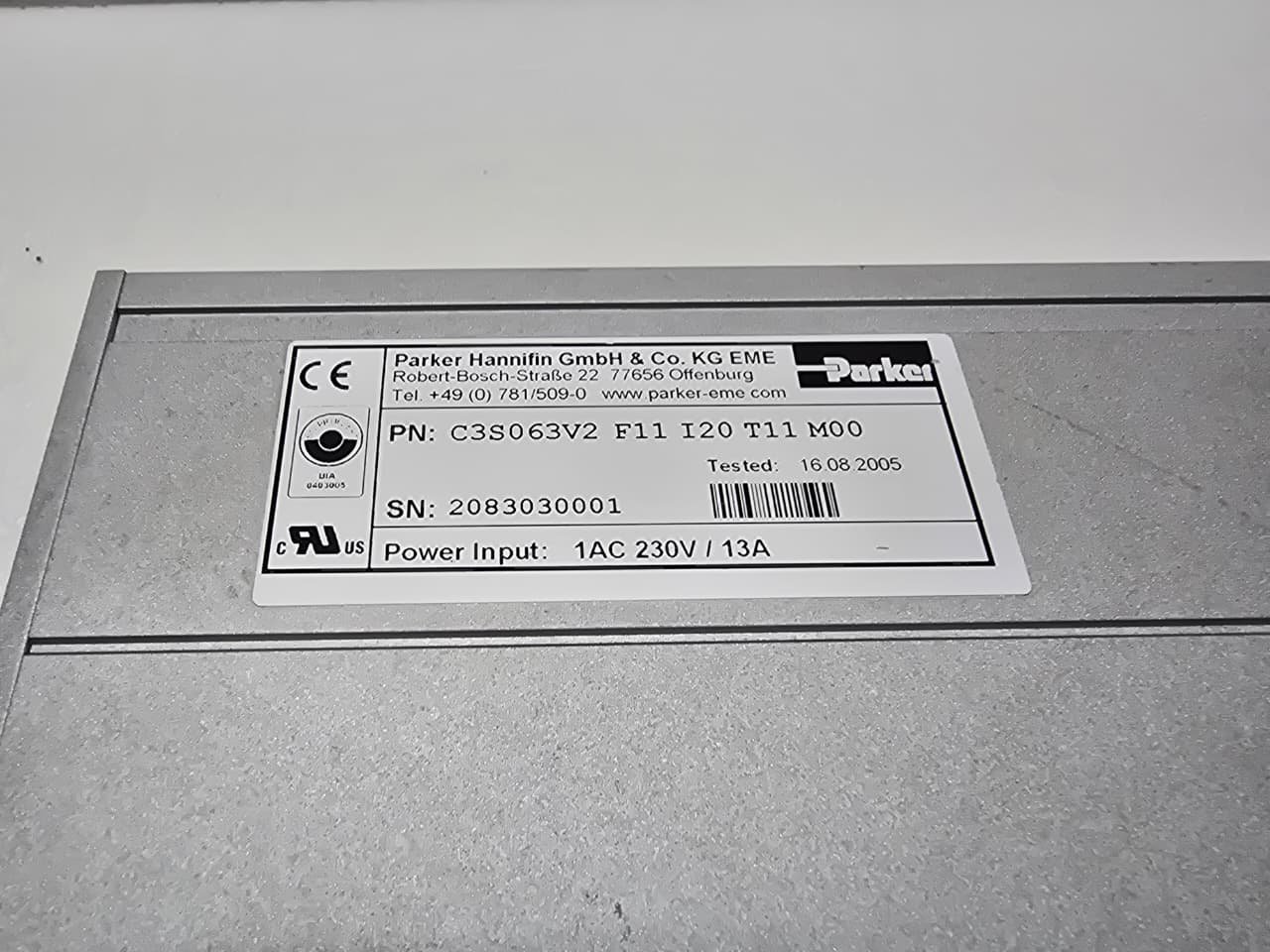

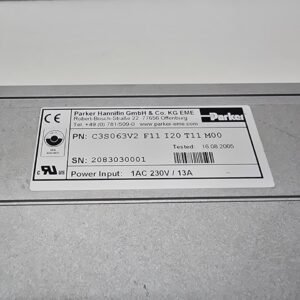

Part Number Breakdown Matrix
| Code Segment | Parameter Feature | Explicit Hardware Configuration |
| C3S | Device Type | Compax3 Single-Axis standalone drive module. |
| 063 | Current Rating | 6.3 A (RMS) continuous output current capacity. |
| V2 | Input Voltage | Single Phase Line Supply: 1×230 VAC (nominal range 80–253 VAC at 50/60 Hz). Output power rating is 2.5 kVA. |
| F11 | Motor Feedback Option | Configured for Absolute Encoder / SinCos / Stegmann / Hiperface feedback devices (as well as standard resolvers/incremental options). |
| I20 | Interface Level | Built-in PROFIBUS DP fieldbus communication network node interface. |
| T11 | Technology Level | Basic Positioning Control platform. Supports profile moves, homing routines, electronic gearing, and target profiles via digital I/O or PROFIBUS commands. |
| M00 | Safety Option | Standard basic module architecture (No integrated safety relay extension card like STO). |
Key Technical Performance Data
Electrical Specifications
-
Peak Output Current: 12.6 A (RMS) for dynamic acceleration peaks (approx. 2x continuous rating).
-
Logic Supply Requirement: External 24 V DC ±15% required to drive internal logic processing boards and communication links.
-
PWM Frequency: Selectable between 16 kHz and 32 kHz depending on thermal limits and acoustic noise reduction needs.

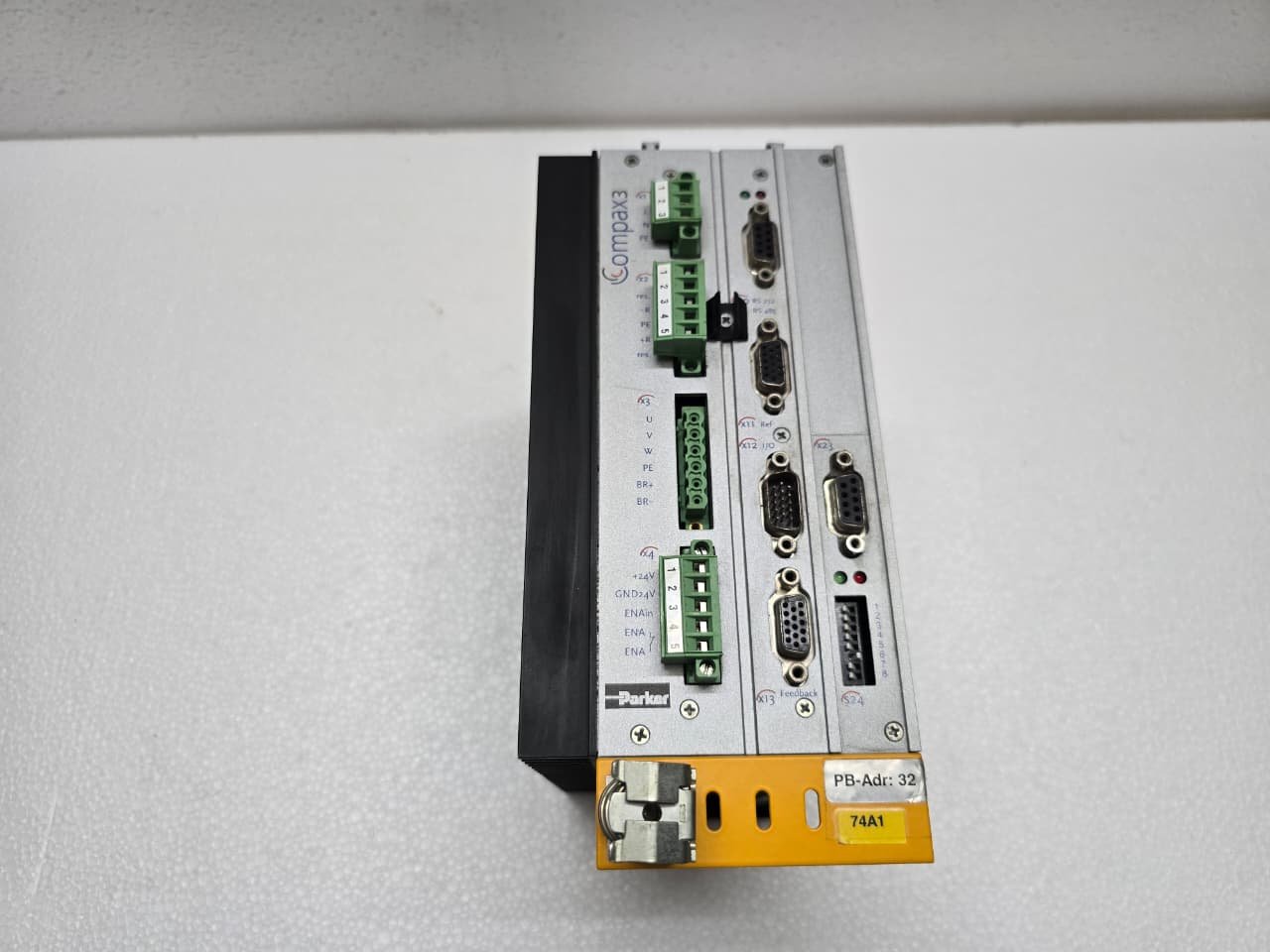

Control Hardware & Onboard I/O Channels (T11 Architecture)
Because this runs the T11 positioning profile block, it allocates its control I/O specifically for target position profiling:
